Removing Front Seat Trim Panel (Outer)

WARNING: This page is about a different variant/trim than selected.

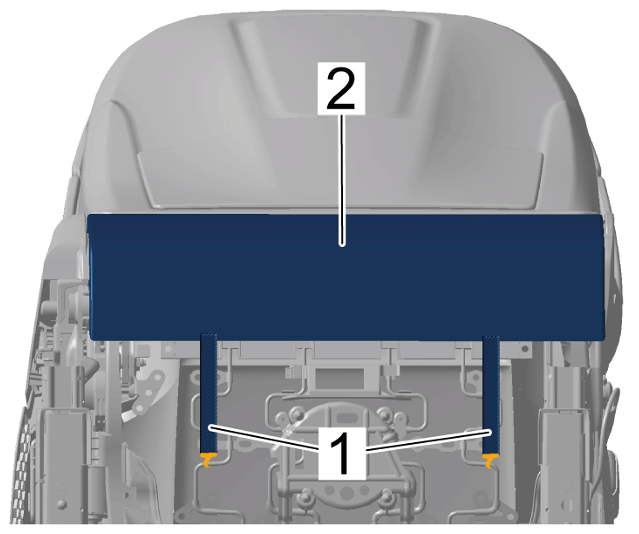

  1. Disengage rubber straps -1-  and fold over tab -2-  on seat cover.
    G15239883Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tab

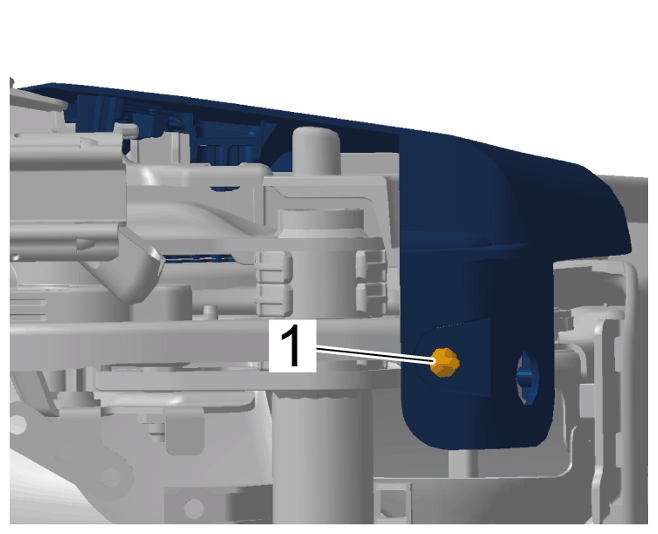

  2. Remove expanding clip -1-  .
    G15239884Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Expanding clip

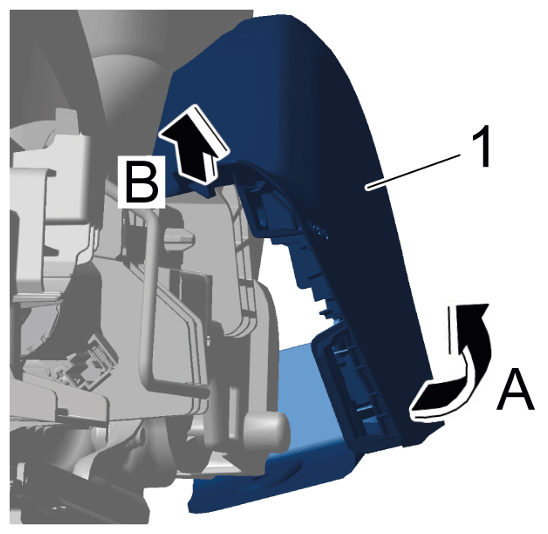

  3. Remove front seat trim panel (outer) -1-  .
    G15239885Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front seat trim panel (outer)

    1. 3.1  Unclip front seat trim panel (outer) -1-  at the bottom -arrow A-  .
    2. 3.2  Unclip front seat trim panel (outer) -1-  at the top -arrow B-  .
    3. 3.3  Remove front seat trim panel (outer) -1-  by turning it to the rear.
