Removing Front Seat Trim Panel (Inner)

WARNING: This page is about a different variant/trim than selected.

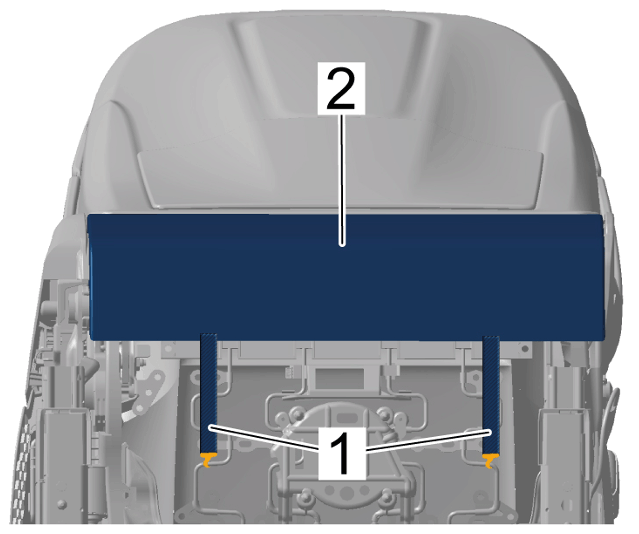

  1. Disengage rubber straps -1-  and fold over tab on seat cover -2-  .
    G15239880Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tab

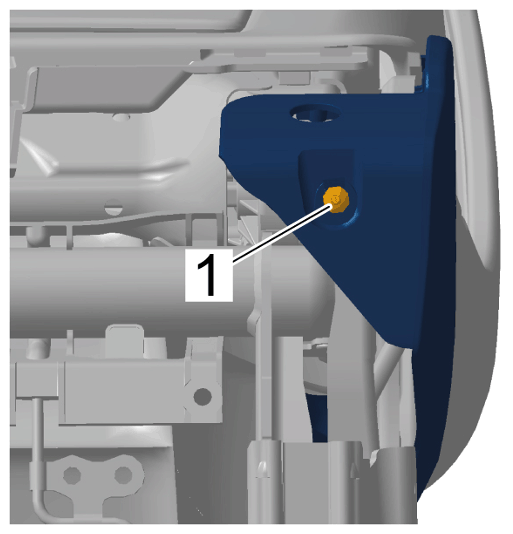

  2. Remove expanding clip -1-  .
    G15239881Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Expanding clip

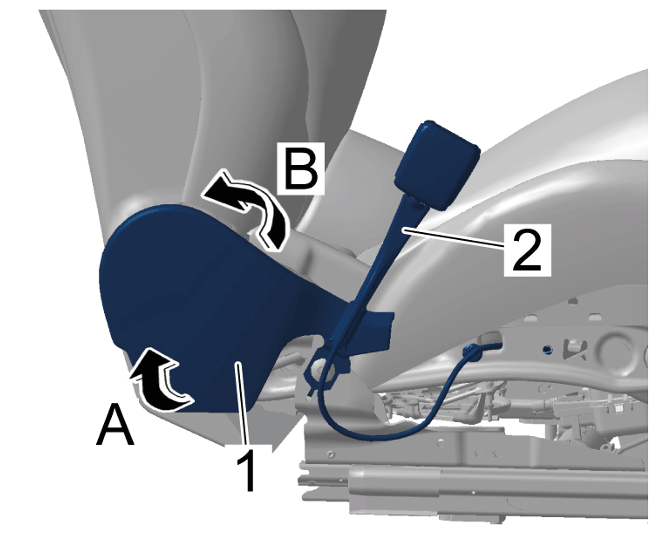

  3. Remove front seat trim panel (inner) -1-  .
    G15239882Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front seat trim panel (inner)

    1. 3.1  Unclip front seat trim panel (inner) -1-  at the front towards the seat-belt buckle -2-  .
    2. 3.2  Unclip front seat trim panel (inner) -1-  at the rear -arrow A-  .
    3. 3.3  Remove front seat trim panel (inner) -1-  by turning it to the rear -arrow B-  and press the seat-belt buckle -2-  outwards.
