Removing Rear Trim Panel (Inner, 2/3-Split Folding Rear Seat)

WARNING: This page is about a different variant/trim than selected.

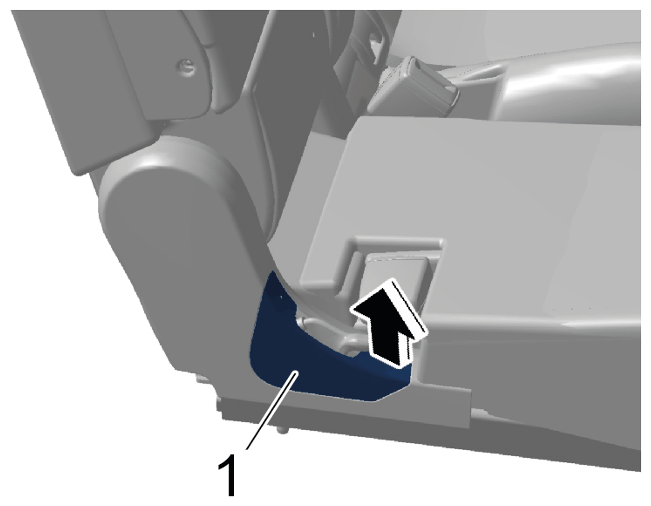

Unclip inner part -1- at the front -Arrow- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner part

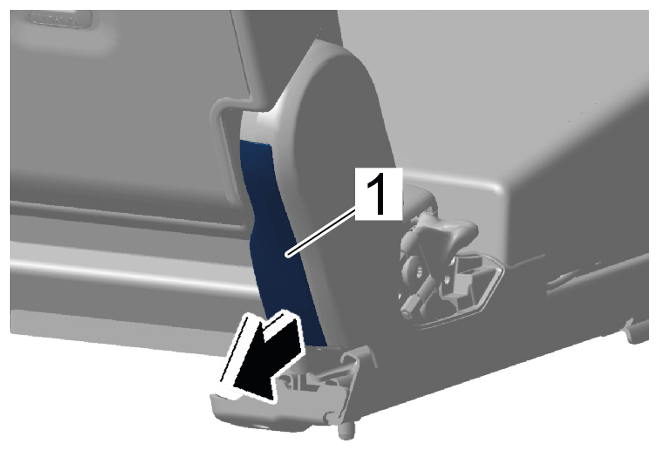

Unclip rear part -1- at the bottom -Arrow- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear part

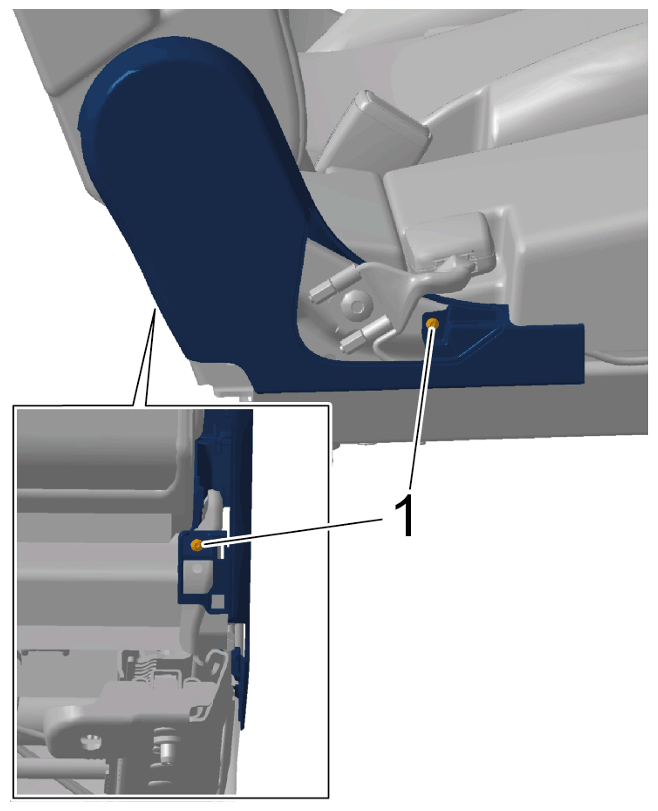

Remove expanding clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Expanding clips
Lift padding for rear seat surface (inner, 2/3-split folding rear seat) up slightly.
Detach rear trim panel (inner, 2/3-split folding rear seat) -1- at the front from the seat frame -Arrow- and move it up slightly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear trim panel (inner, 2/3-split folding rear seat)

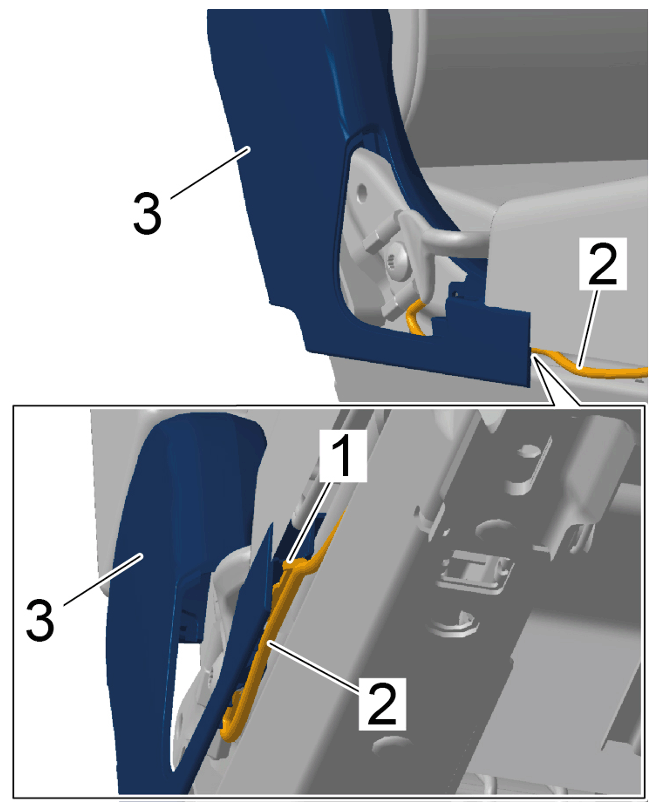

Unclip line bracket -1- and loosen electric wire harness -2- from rear trim panel (inner, 2/3-split folding rear seat) -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness

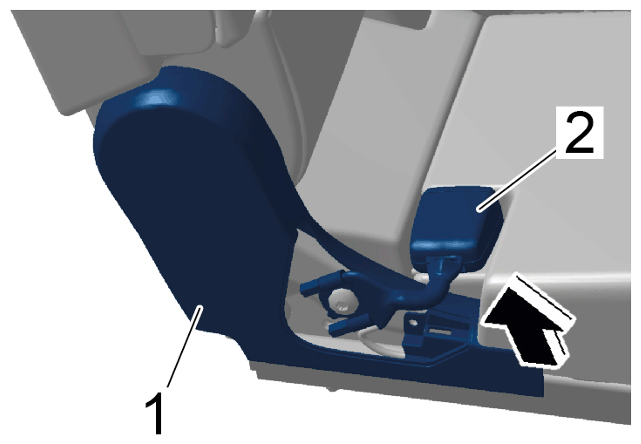

Remove rear trim panel (inner, 2/3-split folding rear seat) -1- , press rear seat-belt buckle for middle seat -2- aside and guide it out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear trim panel (inner, 2/3-split folding rear seat)
