Removing Trim Panel For Control Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removal sequence

1. 1.1  Release locking lugs -Arrows-  , pull trim panel for control panel upwards slightly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front lower locking lugs

2. 1.2  Insert screwdriver into the gap in the trim panel -arrow A-  and release locking lug -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front top locking lug

3. 1.3  Push the cushion aside and release locking lug -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Centre top locking lug

4. 1.4  Push the cushion aside and release locking lug -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear top locking lug

5. 1.5  Release locking lug -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear locking lug

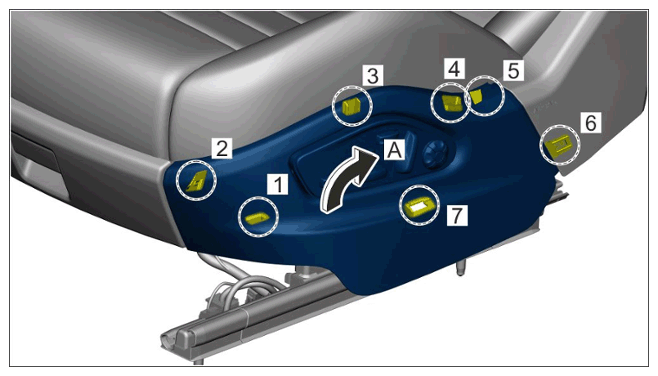

6. 1.6  Detach the trim panel for the control panel by turning -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Turning the trim panel for the control panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel for control panel
