Component Information

WARNING: This page is about a different variant/trim than selected.

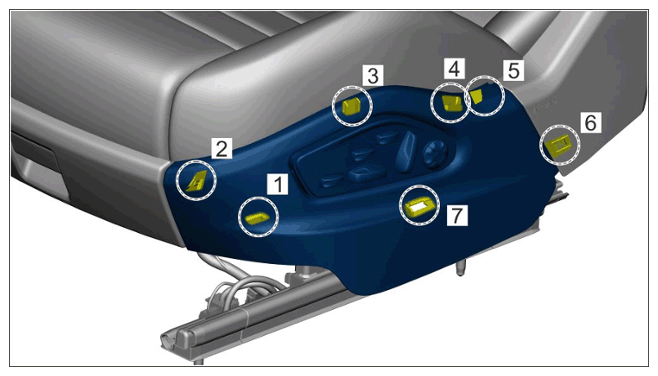

G15239855Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting points

1 Locking lugs, tab on adjacent component
2 Tab, locking lug on adjacent component
3 Tab, locking lug on adjacent component
4 Locking lug, tab on adjacent component
5 Hook, tab on adjacent component
6 Locking lug, tab on adjacent component
7 Hook, tab on adjacent component

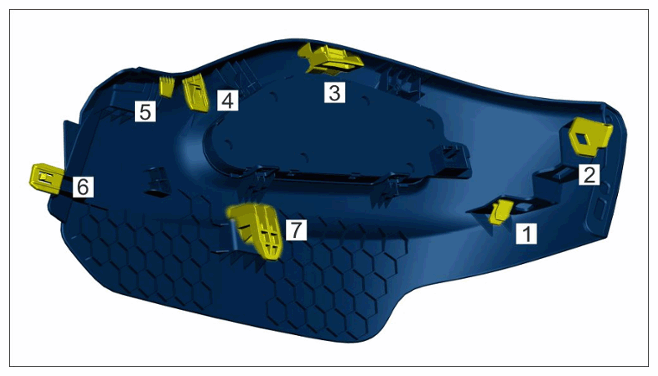

G15239856Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting points

1 Locking lug
2 Tab
3 Tab
4 Locking lug
5 Hook
6 Locking lug
7 Hook
