Removing (Outer) Rear Trim Panel

WARNING: This page is about a different variant/trim than selected.

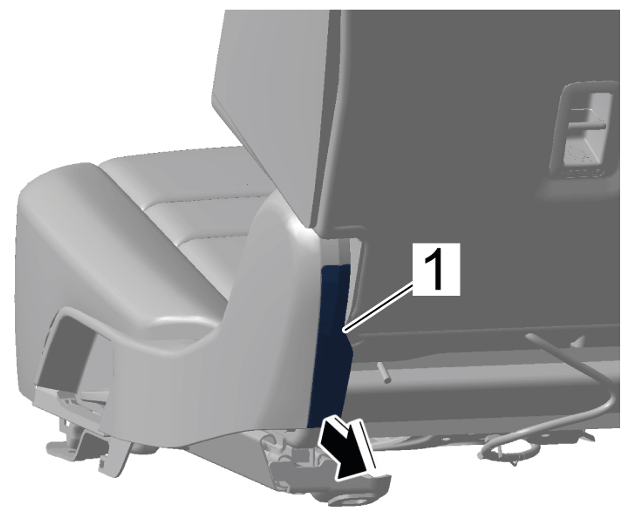

  1. Unclip rear cover -1-  .
    G15239867Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear cover

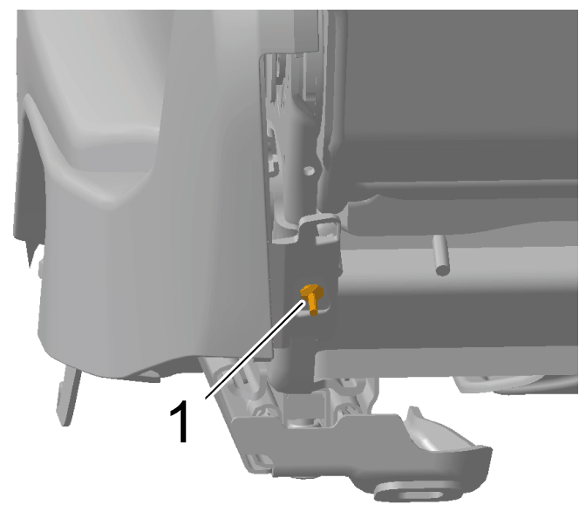

  2. Remove expanding clip -1-  .
    G15239868Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Expanding clip

    Information

    CAUTION: Seat backrest will move abruptly forward.
  3. Actuate release lever -1-  (-arrow A-  ), hold it and remove expanding clip -2-  .
    G15239869Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Release lever

  4. Release tab -3-  and fold it up -arrow B-  .
    G15239870Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tab

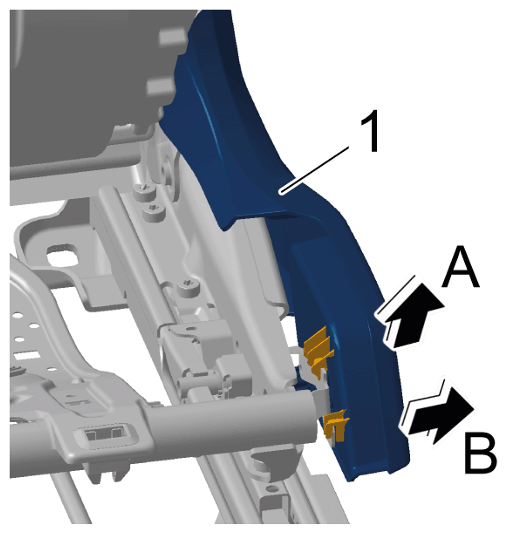

  5. Unclip (outer) rear trim panel -1-  by pulling it upwards -arrow A-  and then remove it by pulling it outwards -arrow B-  . Guide release lever out of the (outer) rear trim panel -1-  at the same time.
    G15239871Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear trim panel (outer)
