Removing Air Cushion For Seat

Information

Removal is shown on the inner air cushion; the method is identical on the outer air cushion.

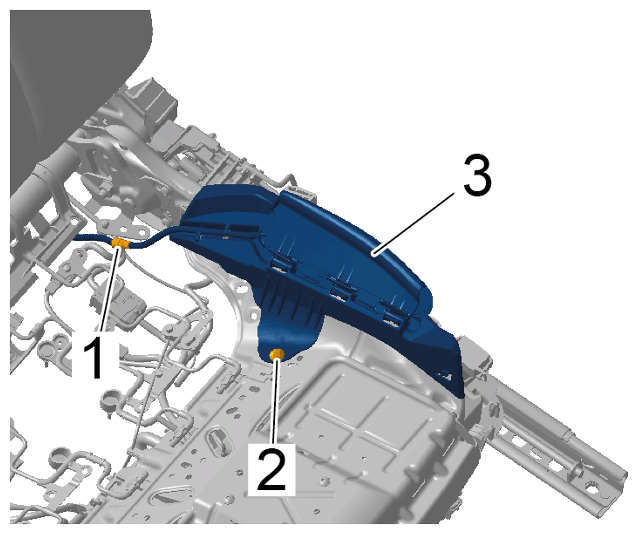

1. Release and disconnect hose connection -1-  from air cushion for seat -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hose connection

2. Remove clip -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clip

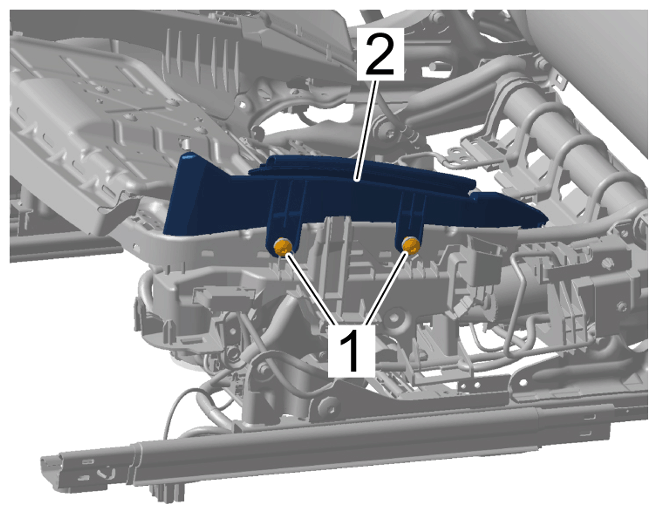

3. Unscrew screws -1-  and remove air cushion for seat -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air cushion for seat
