Oil Pump And Oil Windage Tray

WARNING: This page is about a different variant/trim than selected.

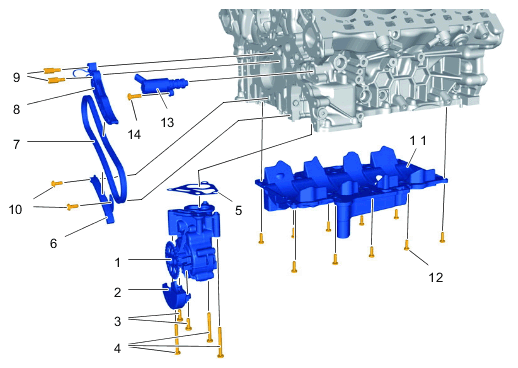

Fig 1: Oil Pump Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pump

1	Oil pump > Initial tightening 20 Nm (15 ftlb.) > Final tightening + 90°
2	Chain guard
3	Screw, M6 x 20 > Tightening torque 9 Nm (6.5 ftlb.)
4	Screw, M6 x 60 > Tightening torque 9 Nm (6.5 ftlb.)
5	Seal/replace
6	Guide rail for oil pump drive
7	Oil pump chain
8	Tensioning rail
9	Collar axle, M6
10	Screw, M6 x 16 > Tightening torque 9 Nm (6.5 ftlb.)
11	Oil windage tray
12	Screw, M6 x 20 > Tightening torque 9 Nm (6.5 ftlb.)
13	Oil pressure control valve
14	Screw, M6 x 20 > Tightening torque 9 Nm (6.5 ftlb.)
not pictured	Screws, M6 x 20 for oil intake tube > Tightening torque 9 Nm (6.5 ftlb.)
