Applying Sealant To Oil Pan

Information

Fitting and sealing components using liquid sealant.

• Clean sealing faces to remove all traces of residual sealant.
• Sealing faces must be free of grease and oil.
• Clean sealing faces with primer Loctite 7515.
• Use liquid sealant Loctite 5970-BM.

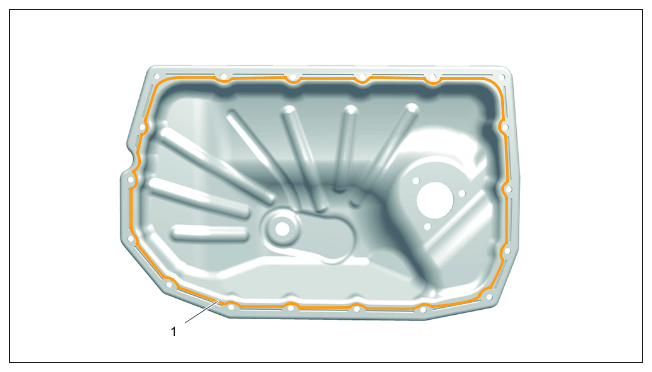

Fig 1: Oil Pan Component Location - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying sealant to oil pan - V8 Turbo
