Tightening Sequence For Chain Housing Cover

WARNING: This page is about a different variant/trim than selected.

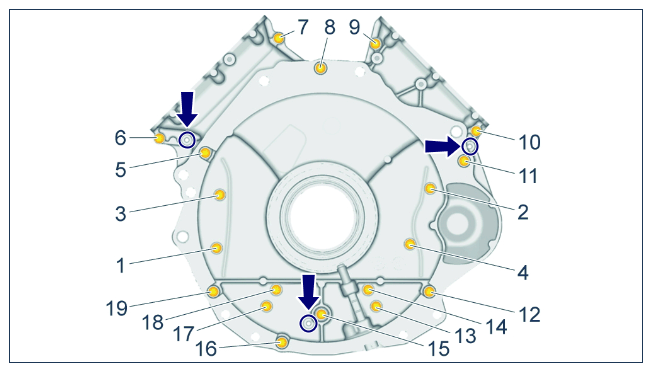

Fig 1: Chain Housing Cover Screws Tightening Sequence - V8 Turbo
G15211926Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for chain housing cover - V8 Turbo

1-19  Tightening sequence for chain housing cover
