Tightening Sequence For Camshaft Bearing Cover

WARNING: This page is about a different variant/trim than selected.

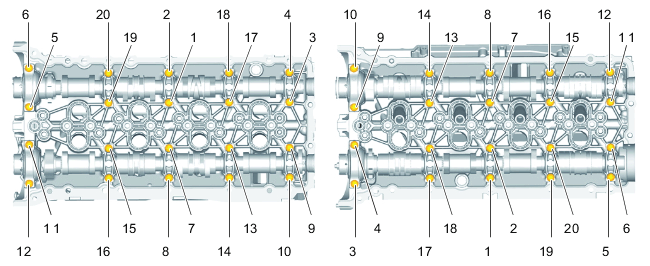

Fig 1: Camshaft Bearing Cover Screws Tightening Sequence - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for camshaft bearing cover - V8 Turbo

1-20	Tightening sequence for camshaft bearing cover

Tightening sequence for cylinder head cover

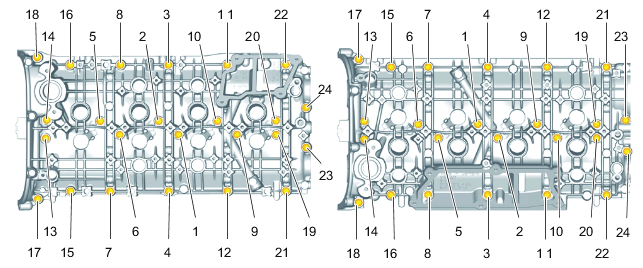

Fig 2: Cylinder Head Cover Screws Tightening Sequence - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for cylinder head cover - V8 Turbo

1-22	Tightening sequence for cylinder head cover at the left and right
