Sealant Application On Cylinder Head Cover

WARNING: This page is about a different variant/trim than selected.

Information

Fitting and sealing components using liquid sealant.

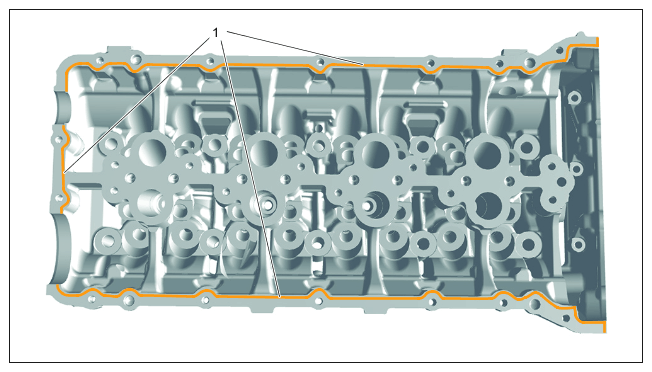

Fig 1: Sealant Application On Cylinder Head Cover Component Location
G15211938Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealant application on cylinder head cover

1  Applying sealant to cylinder head
