Screw Points For Cylinder Head Cover
WARNING: This page is about a different variant/trim than selected.

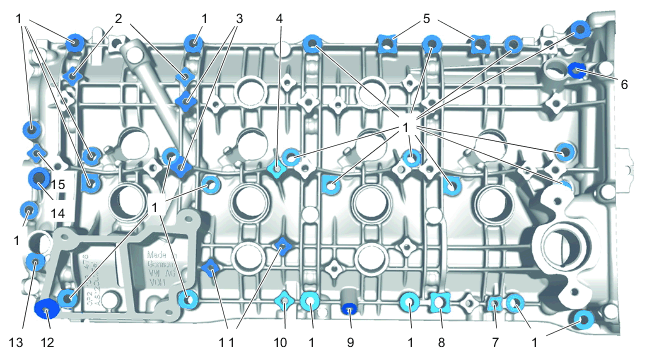

Screw points for cylinder head cover (right) - V8 Turbo
| 1 | Cylinder head cover (24 ea.) |
| 2 | Active carbon filter valve |
| 3 | Fuel collection pipe (8 ea.) |
| 4 | Ignition coil (4 ea.) |
| 5 | Assembly bore |
| 6 | Hall sender for intake camshaft |
| 7 | Fuel line for low-pressure distributor |
| 8 | Assembly bore |
| 9 | High-pressure fuel line |
| 10 | Active carbon filter |
| 11 | Valve lift adjustment |
| 12 | Oil separator (4 ea.) |
| 13 | Hall sender for outlet camshaft |
| 14 | Oil cap |
| 15 | Bracket |
