Cylinder Head
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

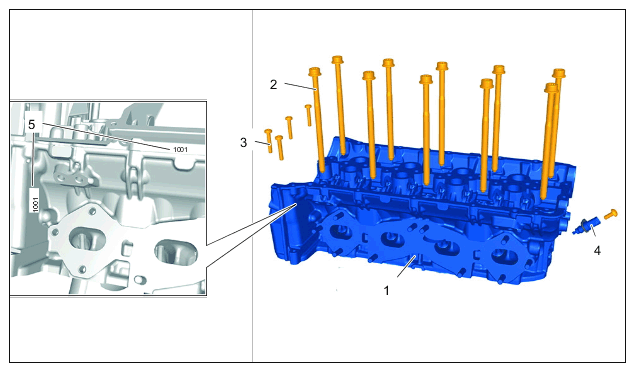

Cylinder head - V8 Turbo
| 1 |
Cylinder head |
| 2 |
Screws, BM 10 x 170 x 120/replace/observe tightening sequence |
| 3 |
Screws, M6 x 35; observe tightening sequence |
| 4 |
Temperature sensor |
| 5 |
Matching number on cylinder head/cylinder head cover |
