Chain Housing Cover

WARNING: This page is about a different variant/trim than selected.

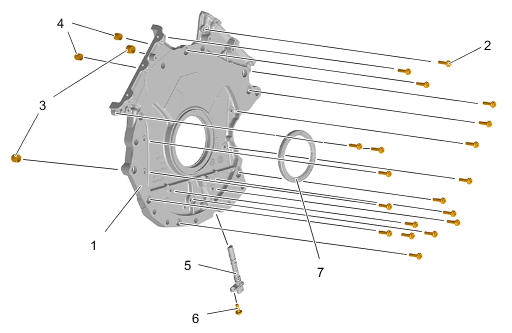

Fig 1: Chain Housing Cover Components Location With Torque Specification
G15211925Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Chain housing cover

1  Chain housing cover
2  Screws, M6 x 25 > Tightening torque 9 Nm (6.5 ftlb.)
3  Dowel sleeves
4  Sleeves for transmission screws
5  Crankshaft pulse sender
6  Screw, M6 x 16
7  Sealing ring/replace
