Intermediate Shaft

WARNING: This page is about a different variant/trim than selected.

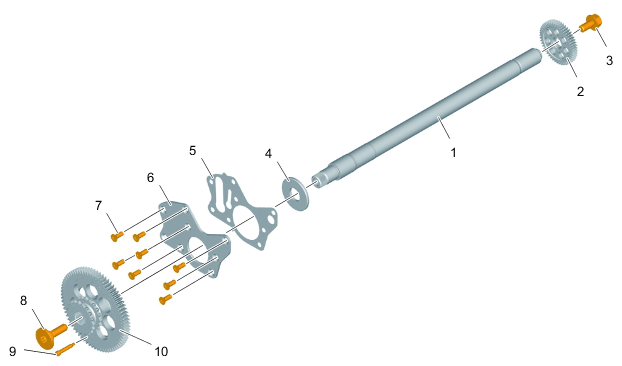

Fig 1: Intermediate Shaft Components Location With Torque Specification - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intermediate shaft - V8 Turbo

1	Intermediate shaft/oil bearing locations
2	Coolant pump drive gear wheel
3	Screw, M10 x 20/replace > Initial tightening 15 Nm (11 ftlb.) > Final tightening+45°
4	Axial bearing
5	Seal/replace
6	Cover
7	Screws, M6 x 16 > Tightening torque 9 Nm (6.5 ftlb.)
8	Screw, M10 x 32/replace > Initial tightening 15 Nm (11 ftlb.) > Final tightening+45°
9	Assembly pin, must be removed following assembly.
10	Bracing gear wheel
