Service Information 13 - Engine - Crank Drive, Pistons: Crankshaft
WARNING: This page is about a different variant/trim than selected.
The allocation of bearing shells to the cylinder block is indicated by a letter at the front left of the cylinder block (can be read from outside).
Allocation of crankshaft bearing shells to bearing covers
Allocation of crankshaft bearing shells to bearing covers

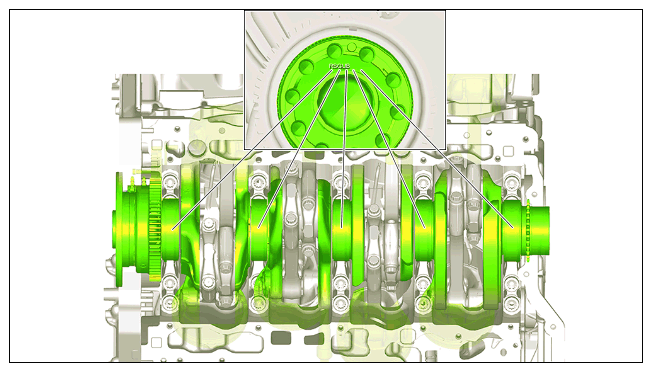

The allocation of bearing shells to the bearing covers is indicated by a letter on the front crankshaft flange as shown.
The series of letters begins with crankshaft bearing "5" (on transmission side) and ends with crankshaft bearing "1" (on pulley side).
| Letter on crankshaft flange/cylinder block | Colour of bearing |
|---|---|
| R = | Red |
| S = | black |
| G = | Yellow |
| U = | green |
| B = | Blue |
