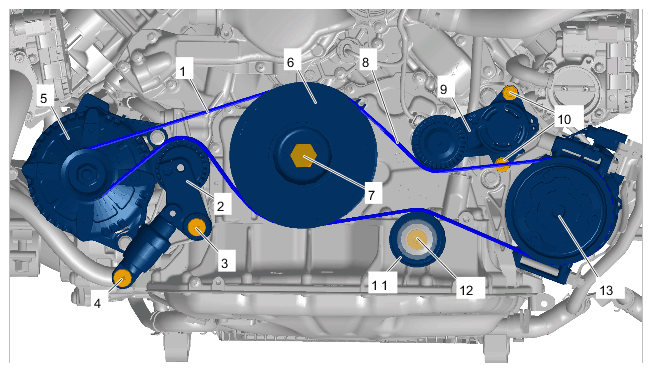

Belt drive - V8 twin-turbo
| 1 | Belt for generator |
| 2 | Belt tensioner damper (generator) |
| 3 | Screw, M8 x 60 top > Tightening torque 32 Nm |
| 4 | Screw, M8 x 33 below > Tightening torque 32 Nm |
| 5 | Generator |
| 6 | Vibration damper |
| 7 | Screw > Initial tightening Step 1 50 Nm > Initial tightening Step 2 100 Nm > Final tightening 180 Grad |
| 8 | Belt for air-conditioning compressor |
| 9 | Belt tensioner damper (air-conditioning compressor) |
| 10 | Screws M8 x 25 > Tightening torque 23 Nm |
| 11 | Deflection roller > Torque 25 Nm |
| 12 | Deflection roller with screw > Torque 25 Nm |
| 13 | Air-conditioning compressor |
