Engine Mount

WARNING: This page is about a different variant/trim than selected.

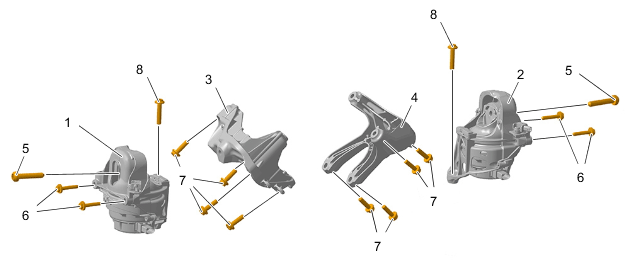

Fig 1: Engine Mounts Components Location With Torque Specification - V8 Biturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mounts - V8 biturbo

1	Left engine mounting
2	Engine mounting, right
3	Left engine support
4	Right engine support
5	Screws M12 x 1.5 x 70/replace > Initial tightening 90 Nm (66.4 ftlb.) > Final tightening + 90°
6	Screw, M8 x 50 > Tightening torque 30 Nm (22.1 ftlb.)
7	Screw (M10 x 35) > Tightening torque 55 Nm (40.6 ftlb.)
8	Screw (M10 x 50) > Tightening torque 55 Nm (40.6 ftlb.)
