Engine Guard

WARNING: This page is about a different variant/trim than selected.

Information

Screws with encapsulation must be replaced following each removal.

Clean threaded gears before inserting new screws.

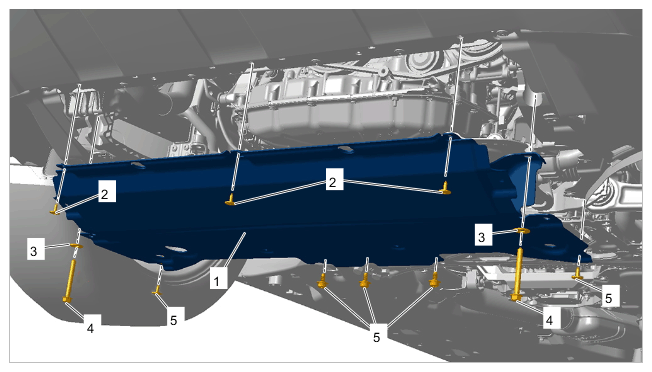

Fig 1: Engine Guard Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine guard

1	Engine guard
2	Screw, M6 x 16 > Tightening torque 6 Nm (4.5 ftlb.)
3	Washer, 10.5 x 24 x 2
4	Screw, M8 x 70 > Tightening torque 25 Nm (19 ftlb.)
5	Screw, M8 x 20 > Tightening torque 20 Nm (15 ftlb.)
