Service Information 10 - Engine - Crankcase, Suspension: Crankcase
WARNING: This page is about a different variant/trim than selected.

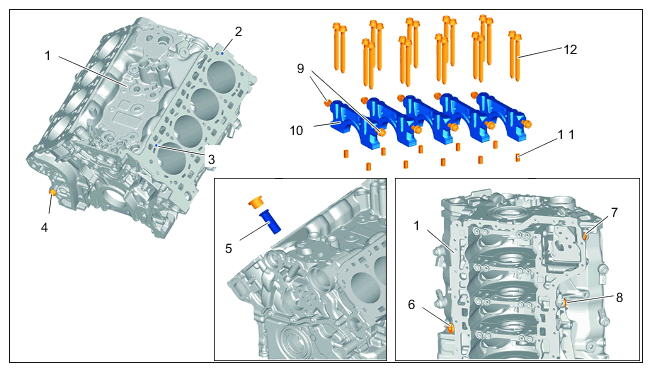

Crankcase
| 1 | Crankcase |
| 2 | Roll pin (4x) |
| 3 | Throttle pin for water jacket (4x) |
| 4 | Dowel sleeve (2x) |
| 5 | Oil duct filler |
| 6 | Screw plug, M22 x 1.5 (2 x water rail plugs/2 x oil duct plugs)/replace sealing ring > Initial tightening 30 Nm > Final tightening+30° |
| 7 | Screw plug. M14 x 1.5/> Tightening torque 15 Nm (11 ftlb.) |
| 8 | Screw plug, M14 x 1.5 (crankshaft staking bore)/remove all-round sealing coating completely and fit O-ring > Tightening torque 25 Nm (19 ftlb.) > Tightening torque 20 Nm (15 ftlb.) |
| 9 | Screws, M8 x 30/replace/observe tightening sequence |
| 10 | Bearing blocks |
| 11 | Dowel sleeve, 24 mm long (10x) |
| 12 | Screws, M10 x 111/replace/observe tightening sequence |
