Oil Cooler
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

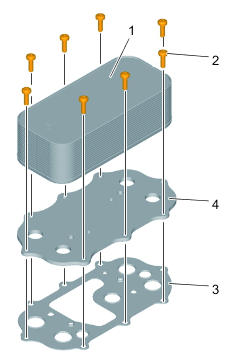

Oil cooler
| 1 |
Oil cooler |
| 2 |
Screws, M6 x 20/tighten screws crosswise from the inside out
> Initial tightening 5 Nm (3.5 ftlb.)
> Final tightening + 9 Nm (6.5 ftlb.) |
| 3 |
Seal |
| 4 |
Not installed |
