Disconnect Coolant Pipe For Coolant Pump

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect coolant pipe for coolant pump -1-  .

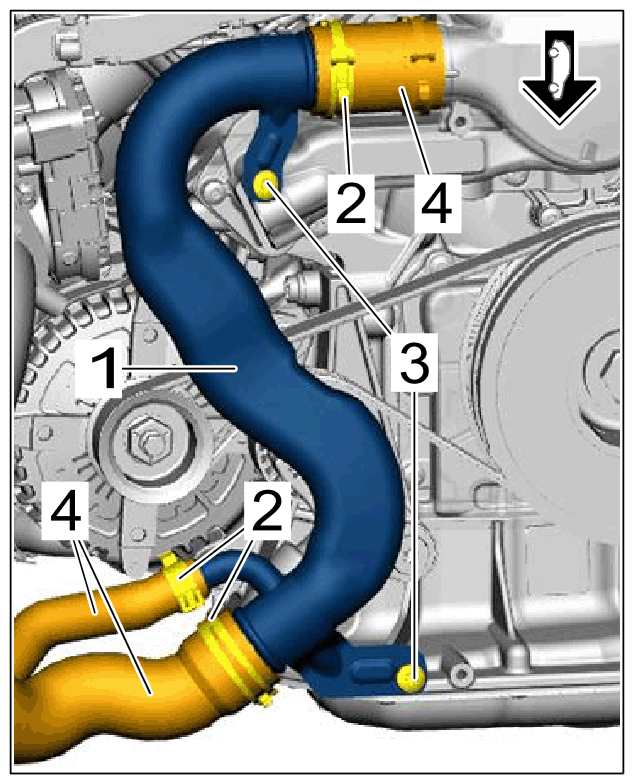

    G15211890Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant pipe coolant pump

    1. 1.1  Loosen spring band clamps -2-  using > VAS 6890 - spring band clamps pliers  .
    2. 1.2  Unscrew screws -3-  .
    3. 1.3  Disconnect coolant pipe for coolant pump -1-  from coolant hoses -4-  .
    4. 1.4  Catch escaping coolant and close off line connections using suitable stoppers.
