Installing Coolant Regulator Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

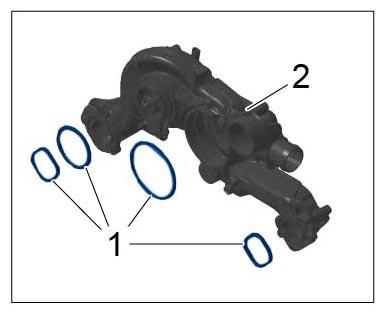

Seals on coolant regulator housing

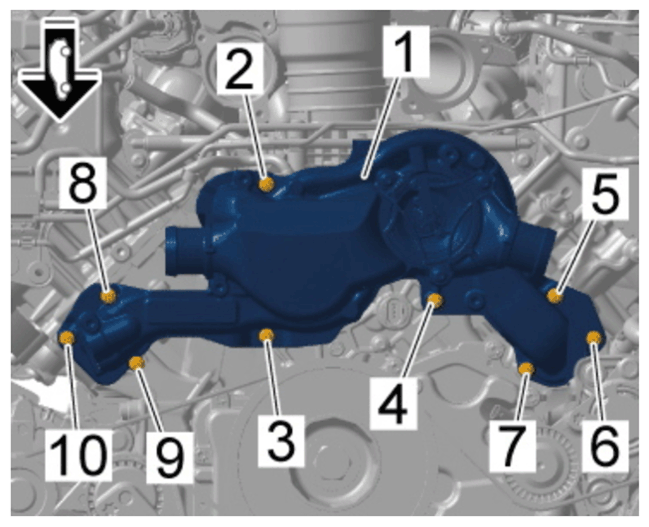

Fig 1: Coolant Regulator Housing Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on coolant regulator housing

1. 2.1  Fit coolant regulator housing -1-  .
2. 2.2  Screw in and tighten screws on coolant regulator housing in the sequence -2 to 10-  . Screws -2 to 4-  (M6 x 40):

   > Tightening torque 9 Nm (6.5 ftlb.)

   Screws -5 to 10-  (M6 x 25):

   > Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

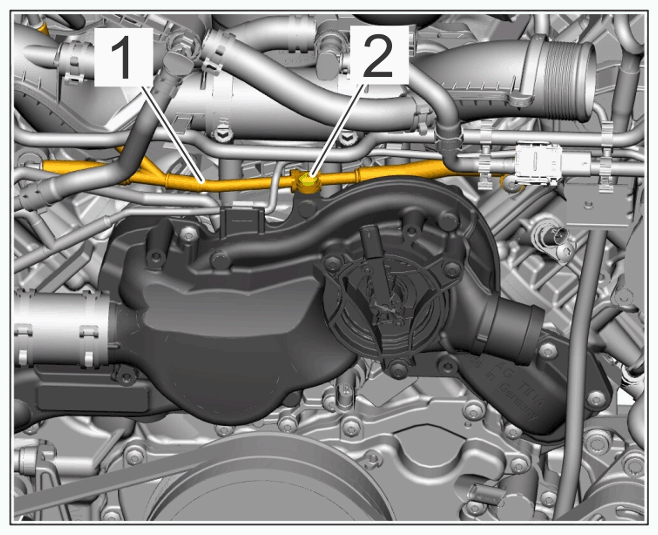

Line on coolant regulator housing

1. 3.1  Tighten screw -2-  .

   Tightening torque: > Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

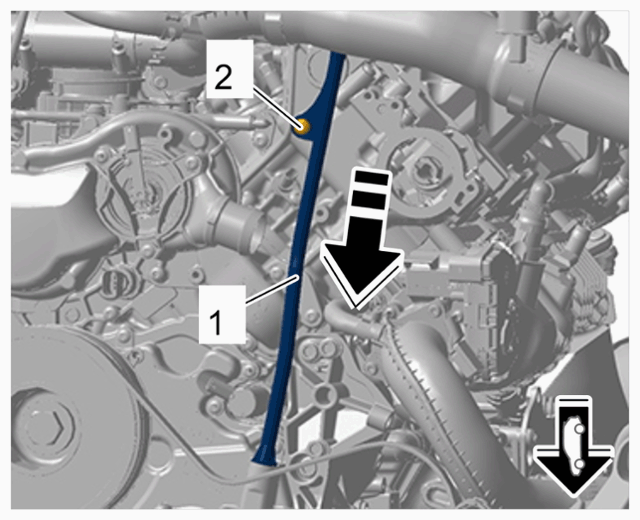

Guide tube for oil dipstick

1. 4.1  Replace seal on guide tube for oil dipstick.
2. 4.2  Insert guide tube for oil dipstick -1-  in direction of -Arrow-  .
3. 4.3  Tighten screw on guide tube for oil dipstick -2-  .

   > Tightening torque 9 Nm (6.5 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

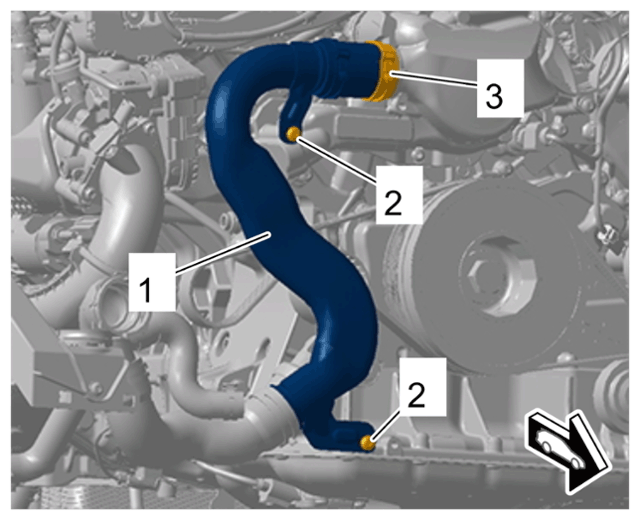

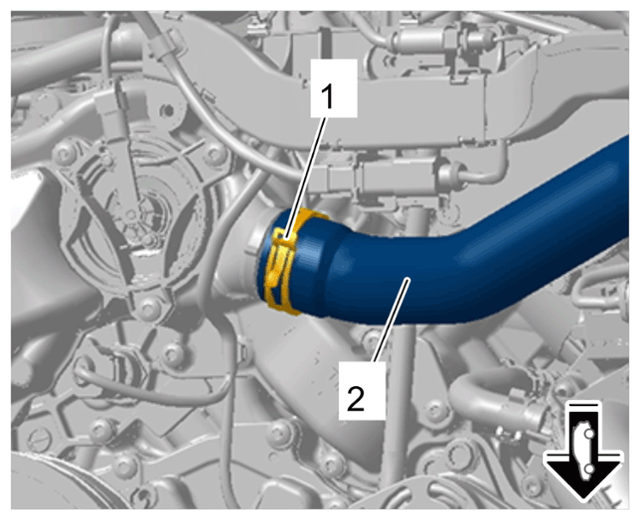

Coolant pipe for coolant pump

1. 5.1  Push coolant pipe for coolant pump -1-  onto coolant regulator housing and secure spring band clamp -3-  using > VAS 6890 - spring band clam pliers  .
2. 5.2  Tighten screws on coolant pipe for coolant pump -2-  .

   > Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left coolant hose

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

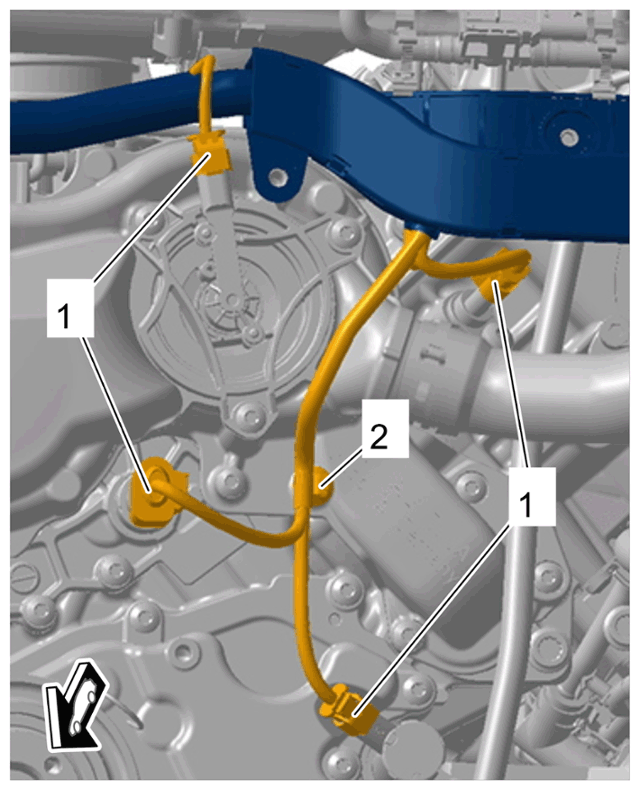

Electric plug connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

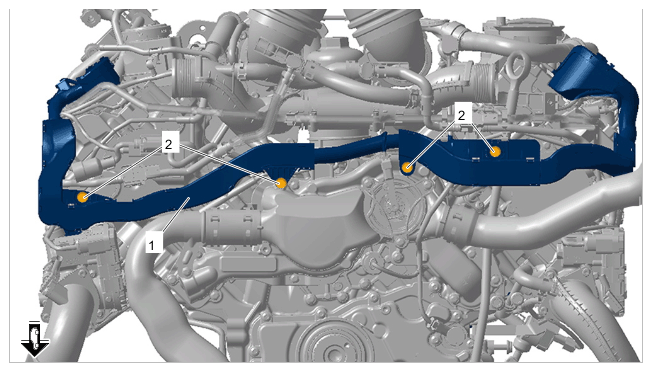

Cable duct

1. 8.1  Move cable duct -1-  into installation position.
2. 8.2  Screw in and tighten screws on cable duct -2-  .

   Front left to cylinder head: > Tightening torque 9 Nm (6.5 ftlb.)

   Front right to cylinder head: > Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

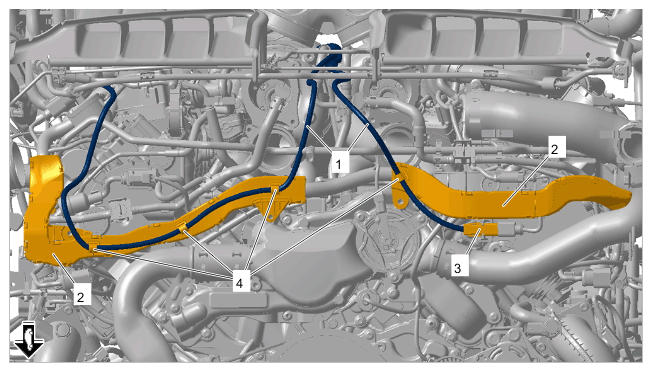

Electric wire harnesses

1. 9.1  Connect and lock electric plug connection -3-  .
2. 9.2  Clip electric wire harnesses -1-  into clips -4-  .
