Removing Coolant Pump

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
- → Let the fluid cool down.
- → Wear personal protective gear.

Remove coolant pump -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

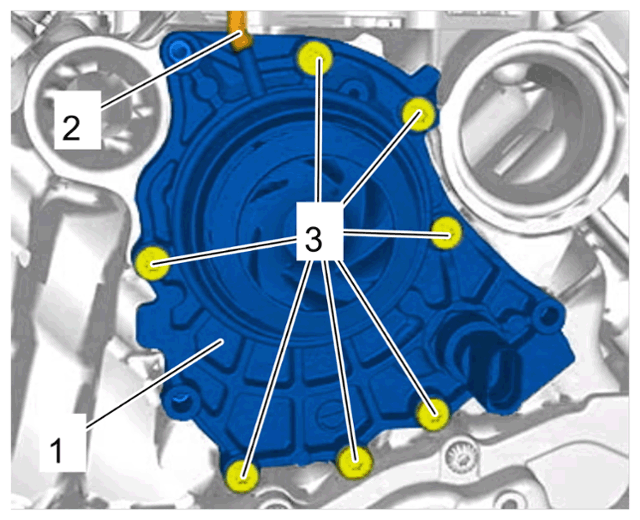

Screws for coolant pump
1. 1.1 Have suitable aids ready for collecting emerging engine oil.
2. 1.2 Pull off vacuum hose -2- .
3. 1.3 Unscrew screws -3- .
4. 1.4 Remove coolant pump -1- .
5. 1.5 Collect escaping fluids.
