Installing Pressure Sensor
WARNING: This page is about a different variant/trim than selected.
- Install pressure sensor at the relevant side -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

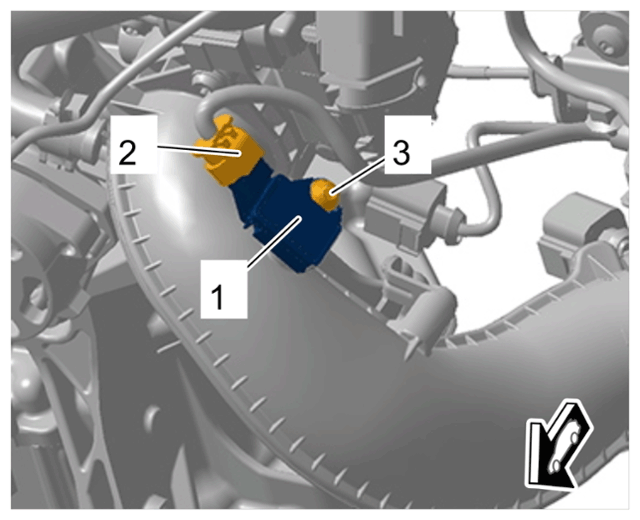

Pressure sensor (shown on left pressure pipe)
- 1.1
Replace O-ring.
- 1.2
Position pressure sensor -1-
.
- 1.3
Tighten screw -3-
.
> Tightening torque 5 Nm (3.5 ftlb.)
- 1.4
Connect electric plug connection -2-
.
