Removing Pressure Pipe (On Charge - Air Cooler]

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Disconnect pressure hose -1-  at pressure pipe -2-  .

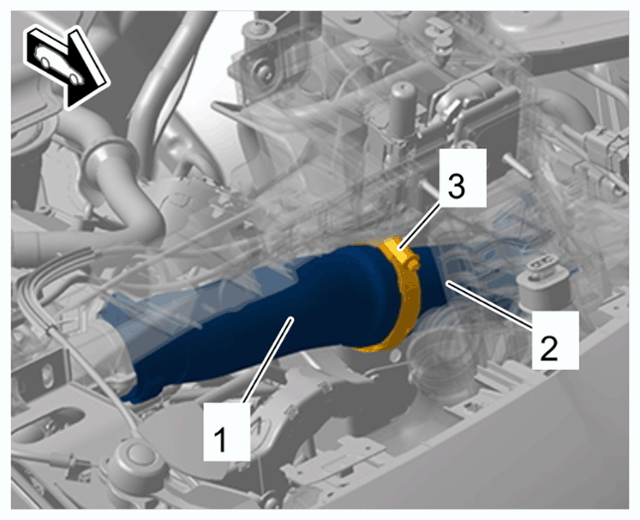

    G15258877Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure hose on pressure pipe

    1. 1.1  Loosen screw-type clamp on pressure hose -3-  .
    2. 1.2  Pull pressure hose -1-  off pressure pipe -2-  .
    3. 1.3  Remove screw-type clamp on pressure hose -3-  and set pressure hose -1-  aside.
  2. Remove pressure pipe -1-  .

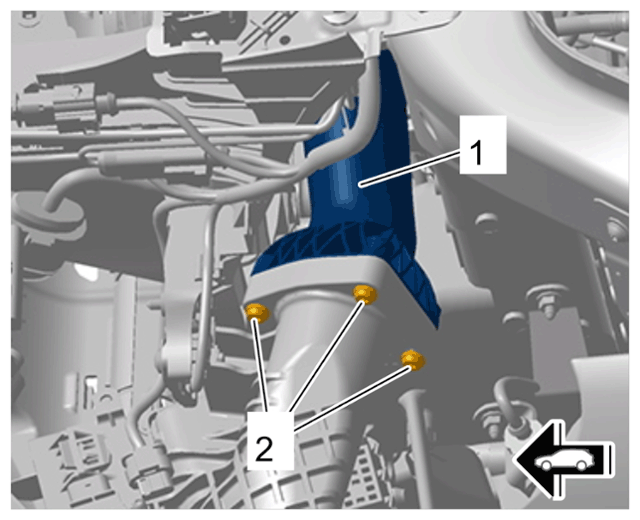

    G15258878Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure pipe on charge-air cooler

    1. 2.1  Unscrew screws for pressure pipe -2-  .
    2. 2.2  Remove pressure pipe -1-  .
