Removing Right Throttle Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

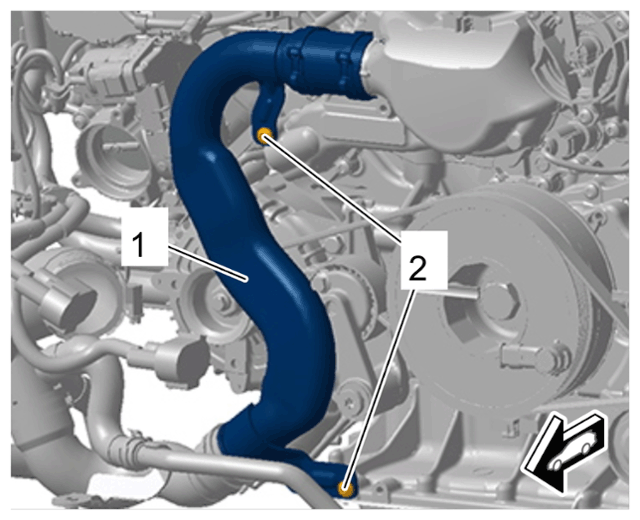

Coolant pipe at coolant regulator housing

1. 1.1  Unscrew and remove screws -2-  .
2. 1.2  Carefully push coolant pipe -1-  aside until the throttle housing is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

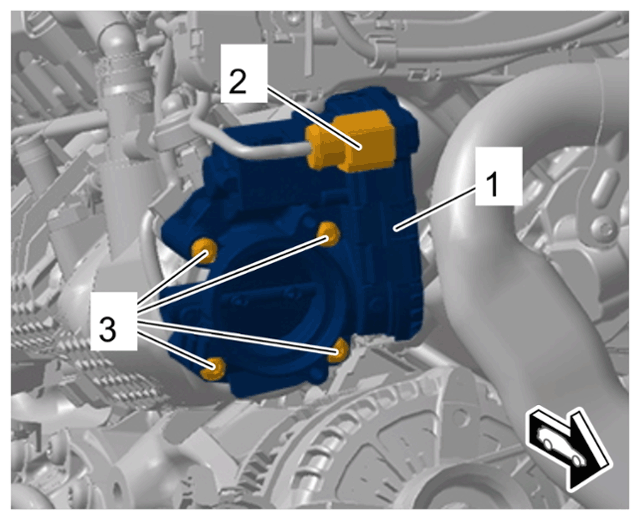

Right throttle housing

1. 2.1  Release and disconnect electric plug connection -2-  .
2. 2.2  Unclip electric line from right throttle housing -1-  .
3. 2.3  Unscrew and remove screws -3-  .
4. 2.4  Carefully guide right throttle housing -1-  down and out.
