Removing Left Throttle Housing
WARNING: This page is about a different variant/trim than selected.

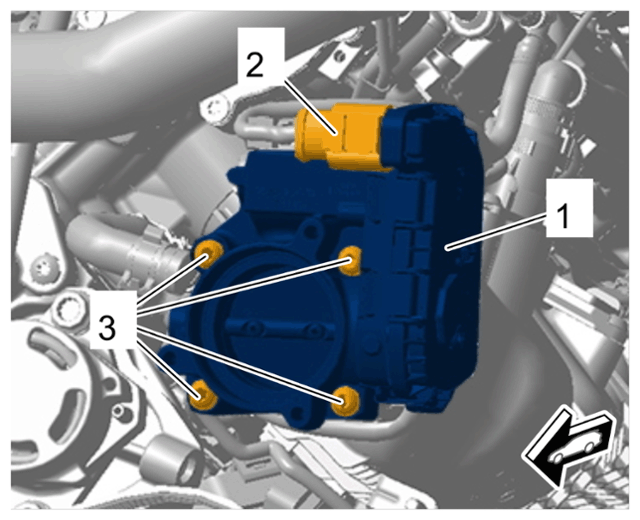

- Remove left throttle housing -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Left throttle housing
- 1.1
Release and disconnect electric plug connection -2-
.
- 1.2
Unscrew and remove screws -3-
.
- 1.3
Carefully guide left throttle housing -1-
down and out.
