Removing Air Cleaner Housing

WARNING: This page is about a different variant/trim than selected.
  1. Close off intake pipes using suitable stoppers.
  2. Press clip on the oil pipe -1-  and pull oil pipe -1-  up off the holder -2-  on the air cleaner housing.
    G15258914Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil pipe on air cleaner housing

  3. Remove air cleaner housing -1-  .

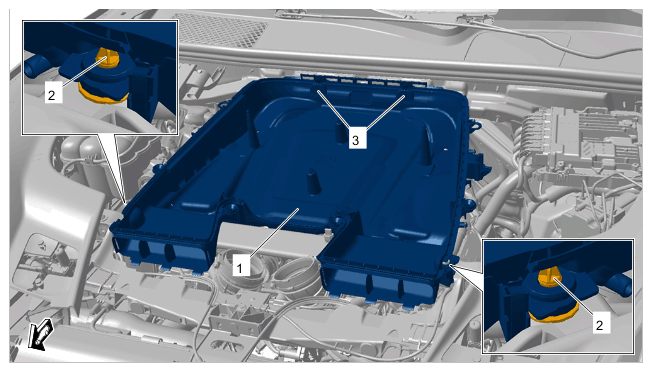

    G15258915Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air cleaner housing

    1. 3.1  Pull air cleaner housing -1-  up out of the holders -2-  .
    2. 3.2  Pull air cleaner housing -1-  forward off the contact points -3-  .
