Removing Camshaft Sensor (Outlet Camshafts)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove camshaft sensor -1-  .

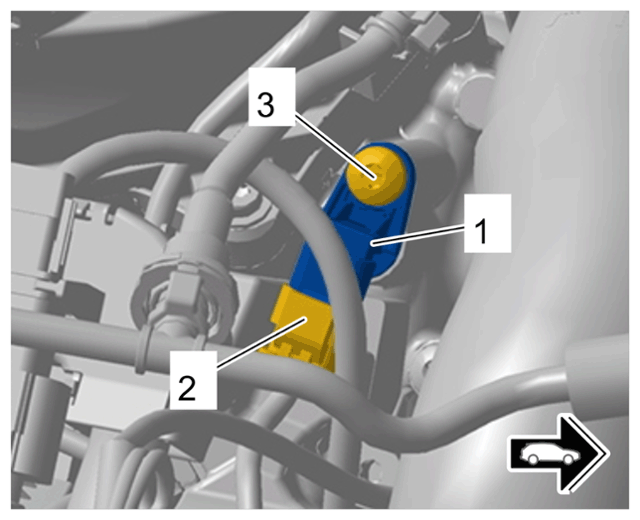

    G15259261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Camshaft sensor

    1. 1.1  Release and disconnect electric plug connection -2-  .
    2. 1.2  Unscrew screw -3-  and remove.
      1. 1.2.1  At the camshaft sensor of the exhaust camshaft cylinder bank 2, the thermal insulation must also be lifted.
    3. 1.3  Remove camshaft sensor -1-  .
