Removing Exhaust Temperature Sensor At The Right

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down.
2. → Wear personal protective gear.

Remove exhaust temperature sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

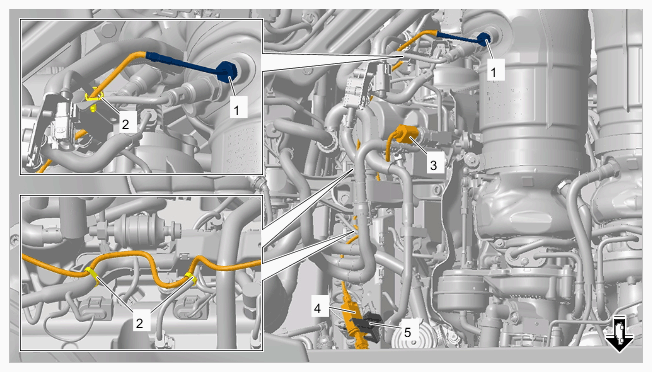

Exhaust temperature sensor, right
1. 1.1 Mark installation position of exhaust temperature sensor -1- .
2. 1.2 Cut tie-wrap -2- .
3. 1.3 Release and disconnect cable plug on fuel pressure sensor -3- .
4. 1.4 Unscrew exhaust temperature sensor -1- and guide it towards the cable plug -4- .
5. 1.5 Release and disconnect cable plug -4- and unclip it from the holder -5- .
6. 1.6 Remove exhaust temperature sensor -1- .
