Installing Exhaust Temperature Sensor At The Right

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.
  1. Install exhaust temperature sensor -1-  .

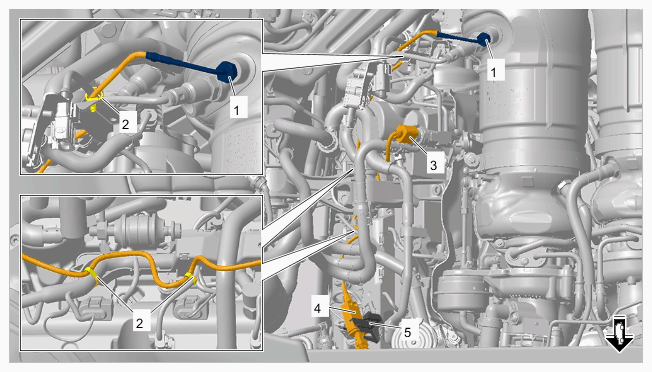

    G15259119Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Exhaust temperature sensor, right

    1. 1.1  Screw in exhaust temperature sensor -1-  , align it with the marking and tighten it.

      > Tightening torque 45 Nm (33 ftlb.)

    2. 1.2  Connect and lock cable plug -4-  and clip it into holder -5-  .
    3. 1.3  Secure electric line with new  tie-wraps -2-  .
    4. 1.4  Connect and lock cable plug for fuel pressure sensor -3-  .
