Removing Heat Shield For Fuel Tank

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shield for fuel tank -1-  .

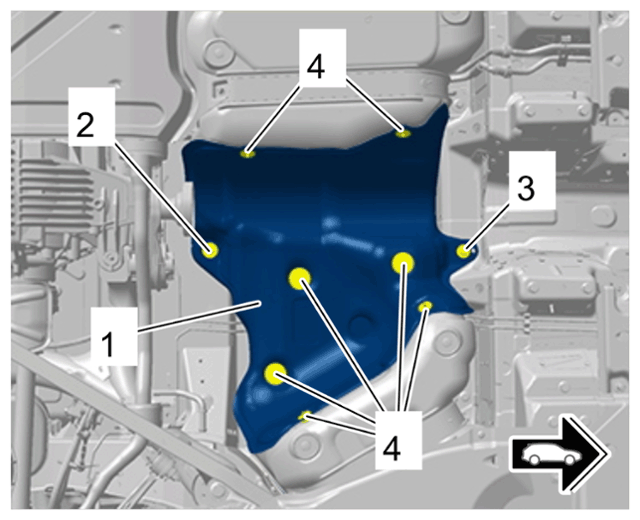

    G15259059Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield for fuel tank

    1. 1.1  Unscrew and remove screws -2 and 3-  .
    2. 1.2  Lever off clamping washers -4-  .
    3. 1.3  Remove heat shield for fuel tank -1-  .
