Installing Heat Shields For Tunnel At The Left

WARNING: This page is about a different variant/trim than selected.

Install heat shields for tunnel at the left -1 and 2- and holders -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

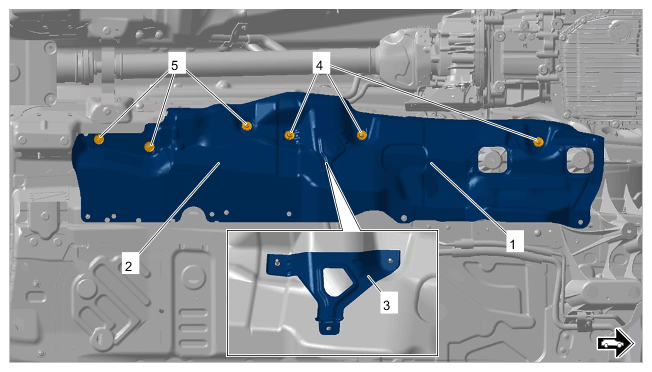

Heat shields for tunnel at the left
1. 1.1 Position heat shields for tunnel at the left -1 and 2- and holders -3- .
2. 1.2 Tighten speed nuts -4 and 5- .
  Speed nuts -4- :
> Tightening torque 2.5 Nm (1.75 ftlb.)

Speed nuts -5- :

> Tightening torque 2.5 Nm (1.75 ftlb.)
