Removing Heat Shield On Right Longitudinal Member

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shield on right longitudinal member -1-  .

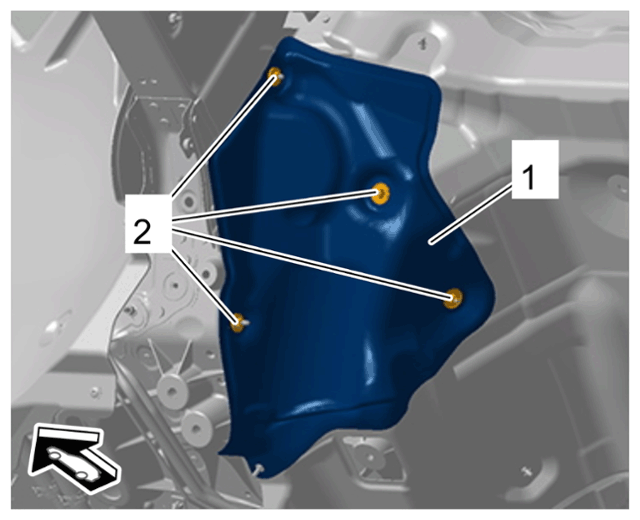

    G15259075Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on right longitudinal member

    1. 1.1  Unscrew speed nuts -2-  .
    2. 1.2  Remove heat shield on right longitudinal member -1-
