Installing Heat Shield On Firewall

WARNING: This page is about a different variant/trim than selected.

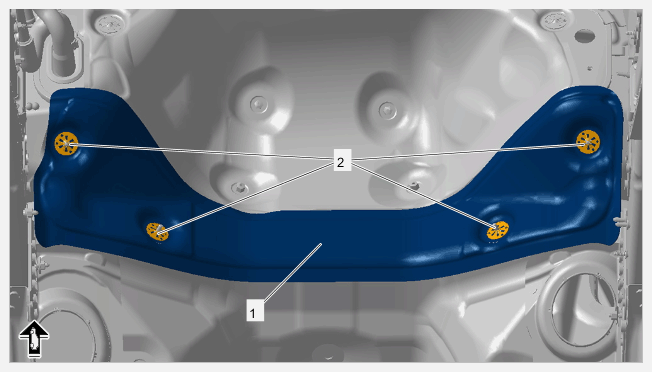

Install heat shield on firewall upper section -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on firewall upper section
1. 1.1 Position heat shield on firewall upper section -1- .
2. 1.2 Tighten speed nuts -2- .
  > Tightening torque 2.5 Nm (1.75 ftlb.)

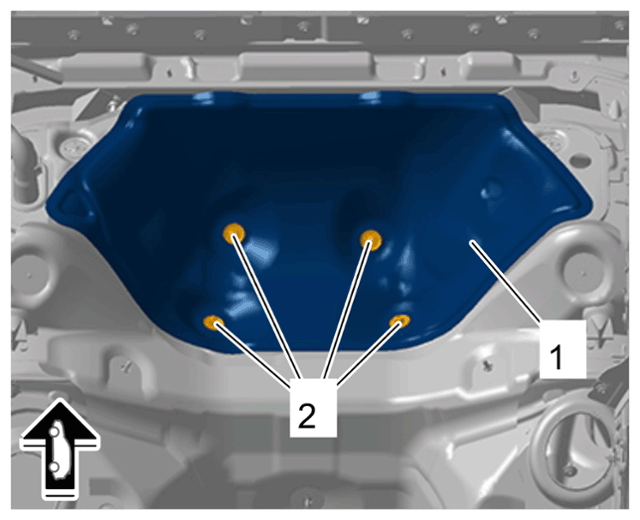

Install heat shield on firewall lower section -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on firewall lower section
1. 2.1 Position heat shield on firewall lower section -1-
2. 2.2 Press on clamping washers -2- .
