Replacing Pulse Sender For Interior Acoustics

NOTIFICATION

Voltage drop

• Irreparable damage to control unit
• Damage to control unit
• Fault entries in the control unit
• Control unit programming/coding is aborted
• Malfunctions in the control unit, even during programming/coding
  1. → Switch off ignition before disconnecting the control unit.
  2. → Make sure that the power supply is not interrupted during programming/coding.
  3. → Connect the battery charger with at least > current 90 A  to the vehicle battery.

Information

The PIWIS Tester  instructions take precedence since the description may be different with later Tester releases.

The procedure described here has been structured in general terms. Different text or additional information may appear on the PIWIS Tester  .

1. Connect the Tester to the vehicle and start it. Switch on ignition.

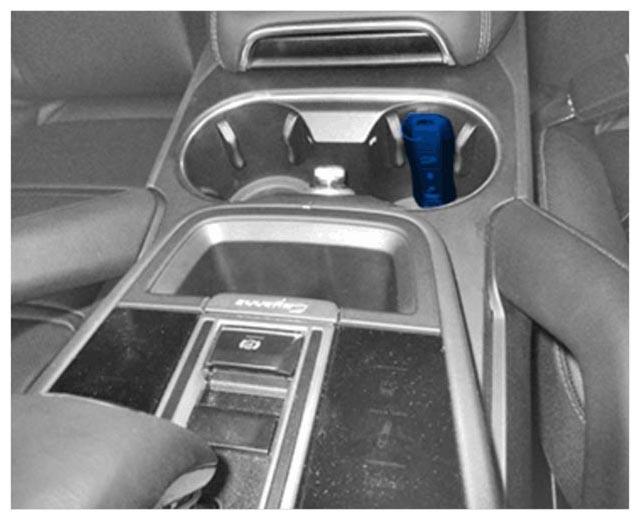

2. Place original remote control in emergency start tray.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Emergency start tray

3. Select the vehicle type if necessary.
4. In the overview,  select the interior acoustics (i-Sound)  control unit. Press F12 to continue. Should a "Vehicle Analysis Log (VAL)" be created? Press F11 to continue.
5. Select Coding/programming.
6. Select Automatic programming.  Press F12 to continue.
   1. 6.1  The Tester displays the message: Programming has been successfully completed. Press F12 to continue.
7. Read out all fault memories  process and delete existing faults if necessary.
8. Exit the diagnostic application. Switch off ignition. Disconnect the Tester from the vehicle.
