Removing Pulse Sender For Interior Acoustics

WARNING: This page is about a different variant/trim than selected.

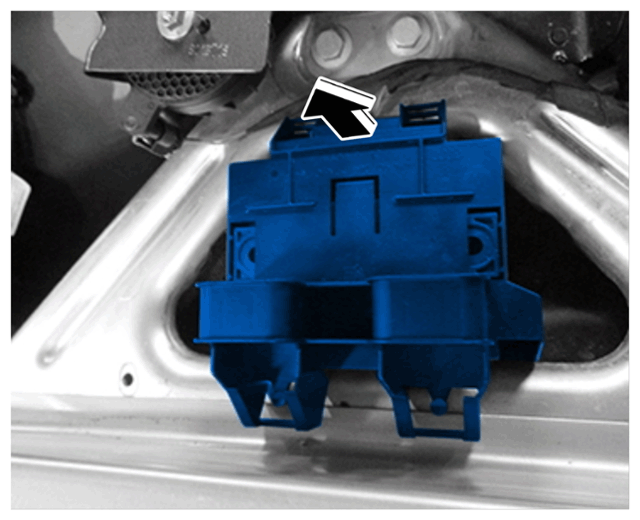

  1. Unclip holder for pulse sender for interior acoustics at the rear.
    G15259039Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for pulse sender for interior acoustics

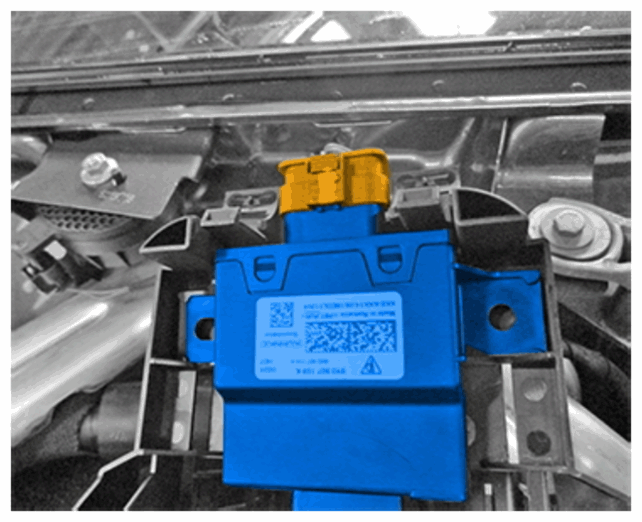

  2. Release and pull off electric plug connection.
    G15259040Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

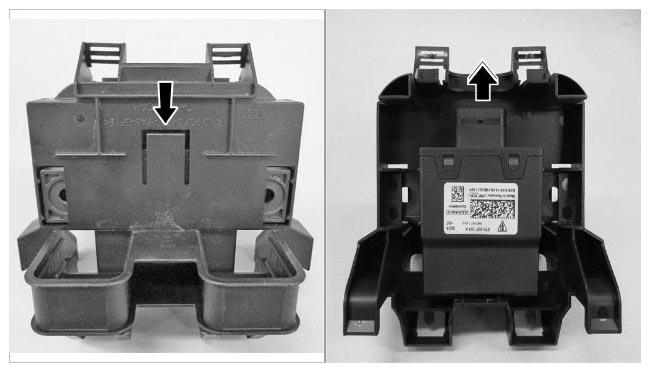

  3. Remove pulse sender for interior acoustics from the holder.
    G15259041Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulse sender for interior acoustics

    1. 3.1  Unclip pulse sender for interior acoustics at the back from the holder.
    2. 3.2  Push pulse sender for interior acoustics at the front up out of the holder.
