Removing Acoustic Simulator
WARNING: This page is about a different variant/trim than selected.

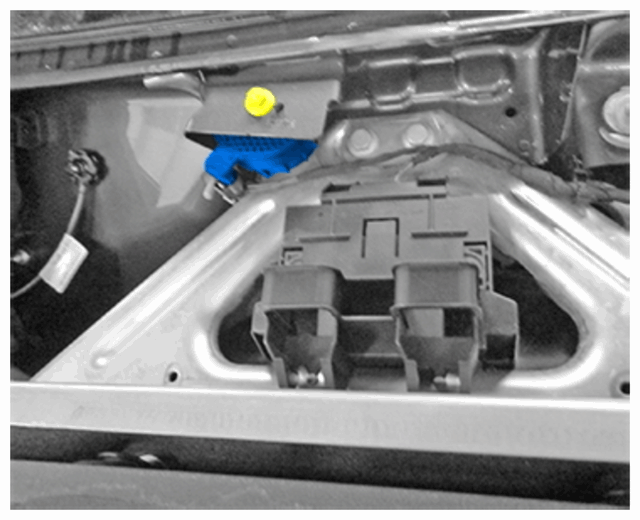

- Unscrew screw on acoustic simulator.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Acoustic simulator

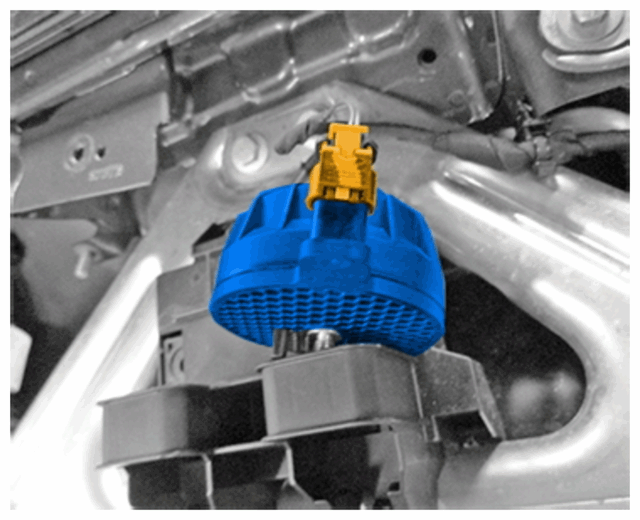

- Release electric plug connection and pull off connector.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection
