Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install all tailpipe trims -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

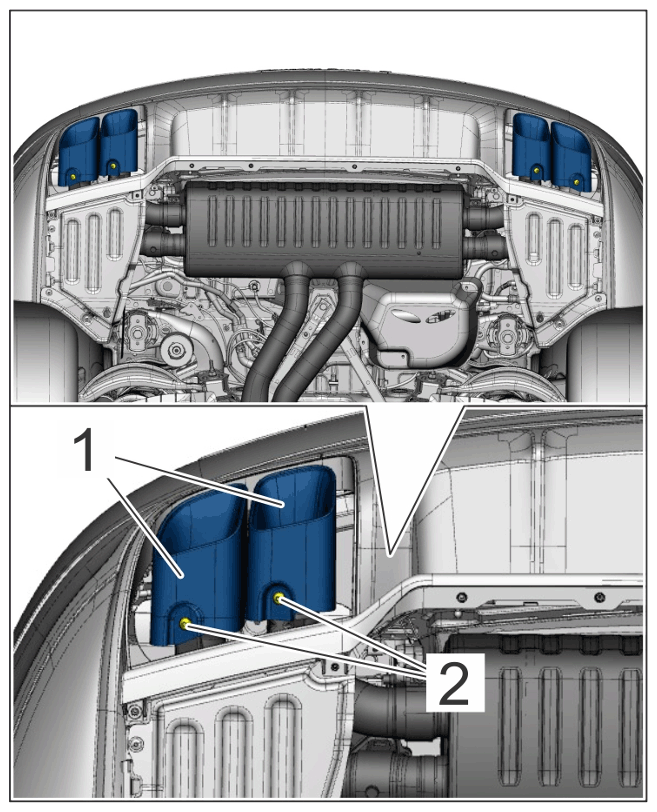

Tailpipe covers
1. 1.1 Fit screws -2- .
2. 1.2 Align tailpipe trims -1- with respect to rear bumper.
3. 1.3 Tighten screws -2- .
  Tightening torque: > Tightening torque 8 Nm (6 ftlb.)
Install rear wheel cover.
> WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY
Secure centre cover.
> WM, 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY
