Removing Trailer Hitch Control Unit

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work  .
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation  .
• Do not touch electric pins and plug contacts  .

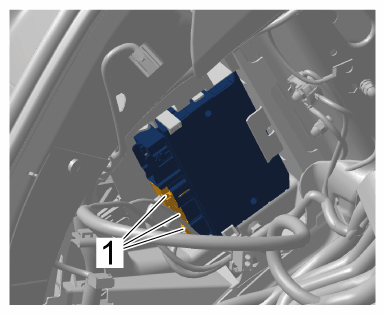

1. Release and unplug electric plug connections -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

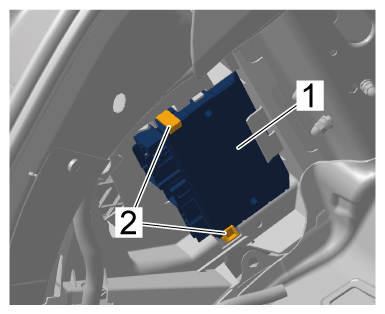

2. Release retaining lugs -2-  and remove trailer hitch control unit -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trailer hitch control unit
