Removing (C-Pillar) Cover

WARNING: This page is about a different variant/trim than selected.

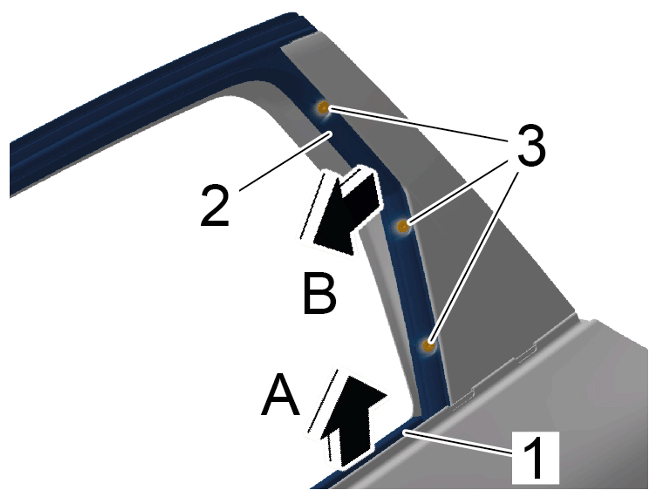

  1. Pull off rear window guide -1-  in the window shaft area -arrow A-  .
    G15237672Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear window guide

  2. Pull off rear window guide -2-  in the C-pillar area -arrow B-  until screws -3-  are accessible.
    G15237673Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear window guide

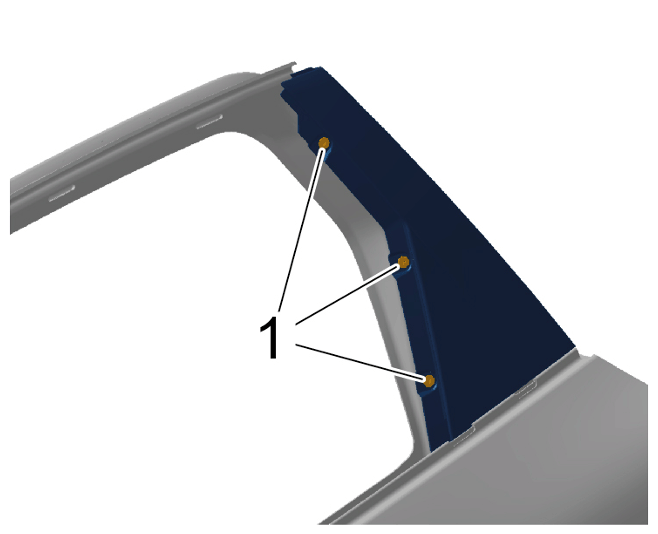

  3. Unscrew and remove screws -1-  .
    G15237674Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  4. Disengage (C-pillar) cover.

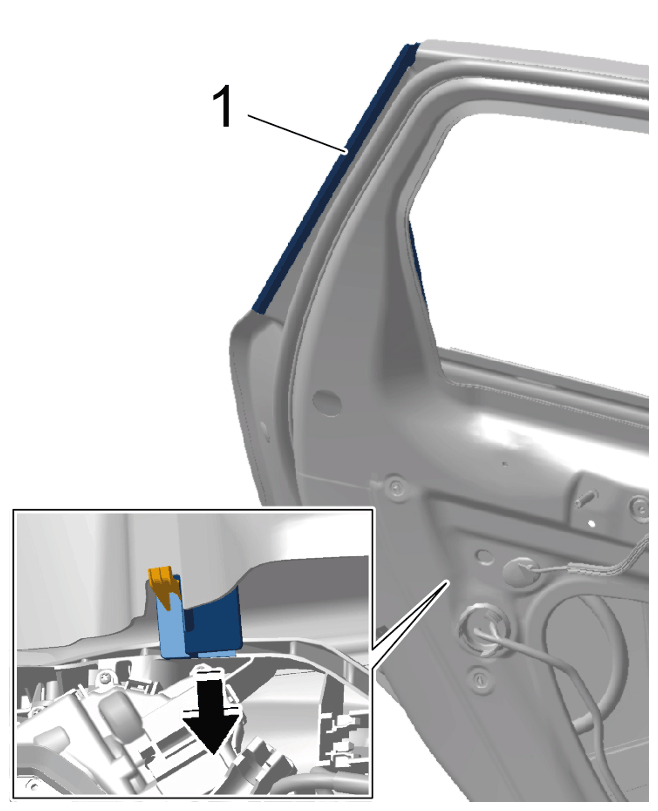

    1. 4.1 Disengage (C-pillar) cover -1-  from basic door frame at the bottom -arrow-  .
      G15237675Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      (C-pillar) cover

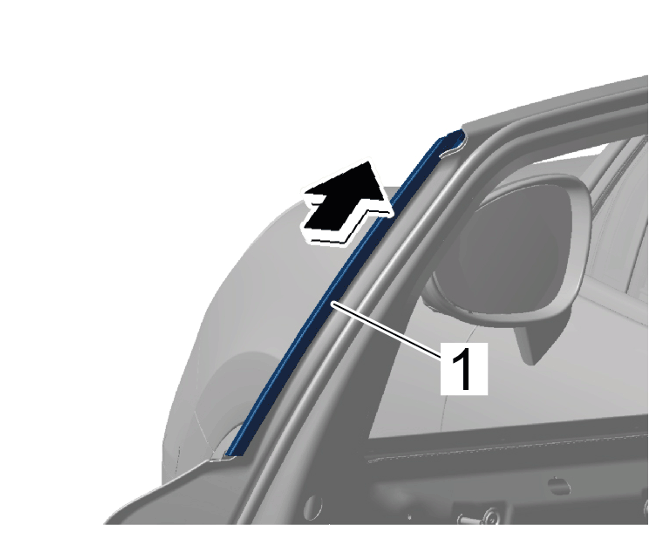

    2. 4.2 Pull (C-pillar) cover -1-  up -arrow-  out of the door channel.
    G15237676Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    (C-pillar) cover
