Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear window channel seal

    > 646819 REMOVING AND INSTALLING REAR WINDOW CHANNEL SEAL

  2. Remove (rear) door window frame.

    > 64441903 REMOVE AND INSTALL (REAR) DOOR WINDOW FRAME

  3. Release and disconnect electric plug connection -1-  on KESSY antenna.

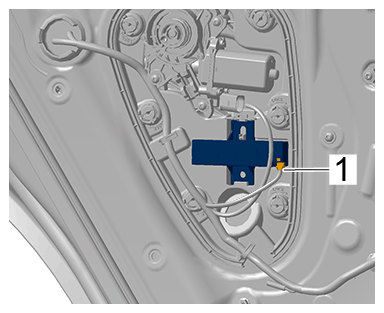

    G15237667Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Kessy antenna

    Only for vehicles with Softclose (I-no. GZ2)

  4. Release electric plug connection -1-  and disconnect it.
    G15237668Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

    Only for vehicles with Softclose (I-no. GZ2)

  5. Disengage bowden cable.

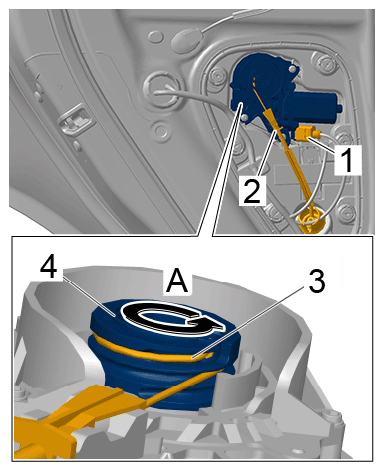

    G15237669Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Closing aid motor

    1. 5.1 Release locking lug -2-  in an upward direction and pull it out.
    2. 5.2 Disengage bowden cable -3-  from the drive -4-arrow A-  .
    3. 5.3 Pull bowden cable -3-  with rubber sleeve out of the mounting plate.

    Only for vehicles with Softclose (I-no. GZ2)

  6. Remove bracket for closing aid.

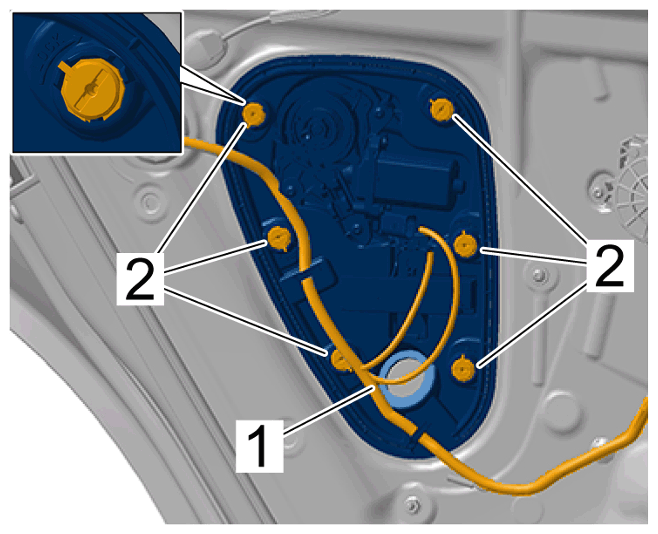

    G15237670Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Closing aid bracket

    1. 6.1 Disengage electric wire harness -1-  .
    2. 6.2 Open locking mechanisms -2-  by turning them anti-clockwise.
    3. 6.3 Take off bracket for closing aid.

    Only for vehicles without Softclose (I-no. GZ2)

    Information

    The cover must be replaced following removal.

  7. Remove cover -1-  .

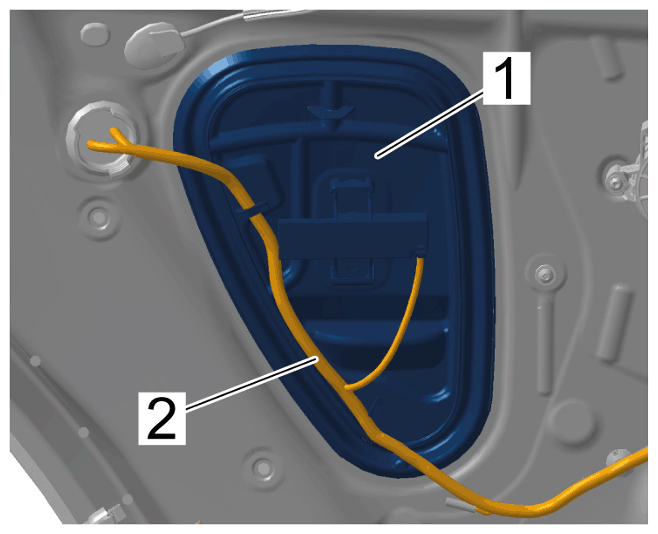

    G15237671Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

    1. 7.1 Disengage electric wire harness -2-  from holders.
    2. 7.2 Unclip cover -1-  .
