Installing (C-Pillar) Cover

Tighten screws to > Tightening torque 2.5 Nm (1.9 ftlb.)  .

Subsequent work

Only for vehicles without Softclose (I-no. GZ2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

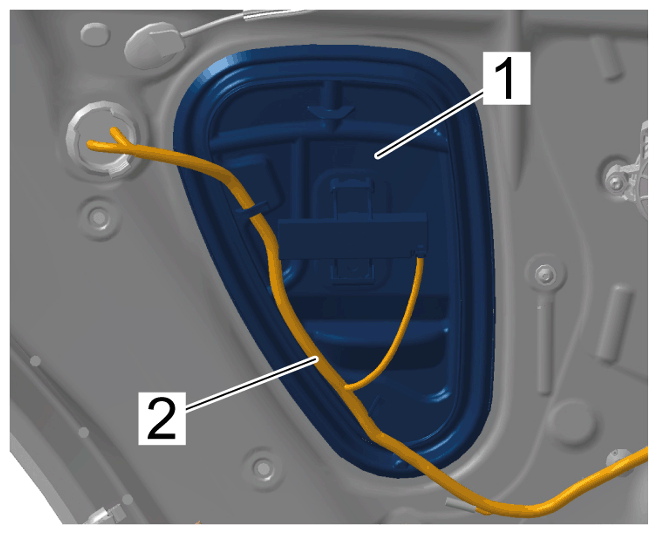

Cover

1. 1.1 Clip in new cover -1-  .
2. 1.2 Engage electric wire harness -2-  .

Only for vehicles with Softclose (I-no. GZ2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

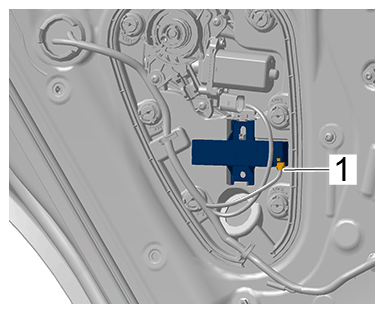

Bowden cable

Only for vehicles with Softclose (I-no. GZ2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

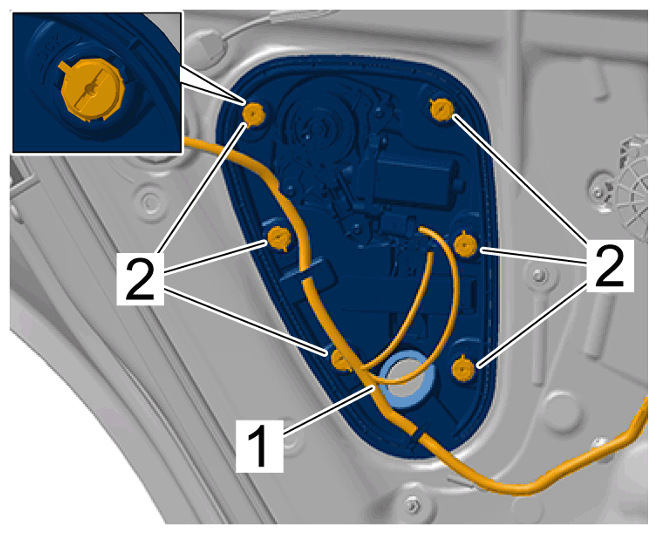

Closing aid bracket

1. 3.1 Fit bracket for closing aid.
2. 3.2 Lock locking mechanisms -2-  by turning them clockwise.
3. 3.3 Engage electric wire harness -1-  .

Only for vehicles with Softclose (I-no. GZ2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

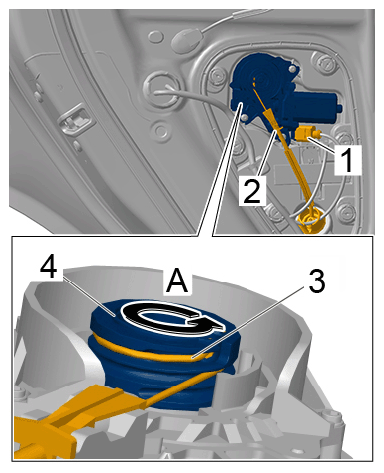

Closing aid motor

1. 4.1 Connect electric plug connections -1-  .
2. 4.2 Engage bowden cable -3-  .
   1. 4.2.1 Engage bowden cable -3-  in the drive -4-  .
   2. 4.2.2 Insert and lock locking lug -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Kessy antenna
