Removing (B-Pillar) Cover

WARNING: This page is about a different variant/trim than selected.

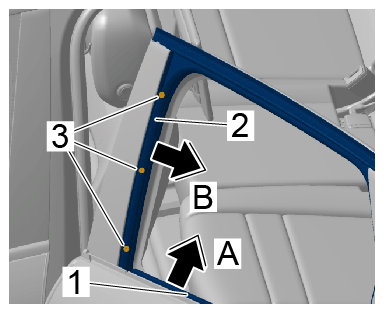

Pull off rear window guide -1- in the window shaft area -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear window guide
Pull off rear window guide -2- in the B-pillar area -arrow B- until screws -3- are accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear window guide

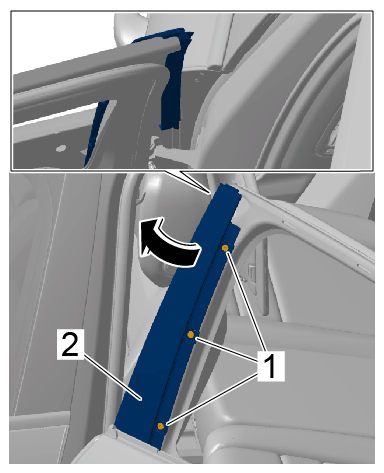

Unscrew and remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Disengage (B-pillar) cover -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

(B-pillar) cover
1. 4.1 Turn (B-pillar) cover -2- away from the door -Arrow- .
2. 4.2 Pull (B-pillar) cover -2- up out of the door channel.
