Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove front window channel seal.

    > 644819 REMOVING AND INSTALLING FRONT WINDOW CHANNEL SEAL

  2. Open the front door window fully.
  3. Remove (front) door window frame.

    > 644419 REMOVING AND INSTALLING (FRONT) DOOR WINDOW FRAME

  4. Pull off front window guide -1- inside -arrow A-  .
    G15237655Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front window guide

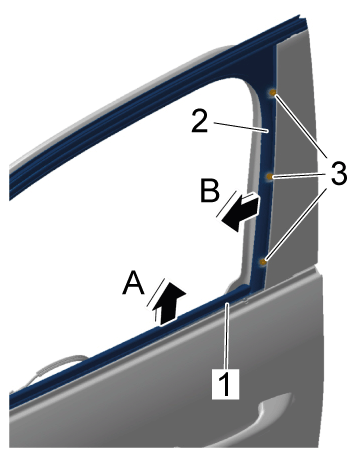

  5. Pull off front window guide -2-  to the rear -Arrow B-  until screws -3-  are accessible.
    G15237656Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front window guide
