Removing Trailer Hitch

WARNING: This page is about a different variant/trim than selected.

Information

Some of the steps are shown only on one side of the vehicle. Complete the steps on both sides of the vehicle.

Information

The help of another person is required.

  1. Unscrew fastening screws -1-  .

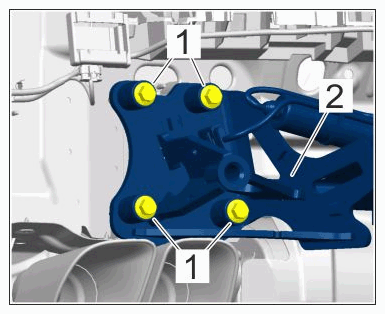

    G15237651Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws for trailer hitch

    Information

    Protect tailpipe covers from damage.

  2. Remove trailer hitch -1-  .

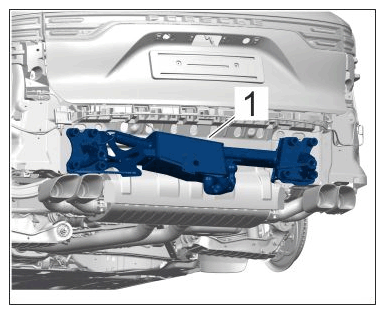

    G15237652Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trailer hitch
