Installing Roof Rails
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
Clean the contact surface -1-
of the roof rails.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Contact surfaces of roof rails
Tighten fastening nuts -1, 2, 3, 4-
in the sequence shown to > Tightening torque 10 Nm (7.5 ftlb.)
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

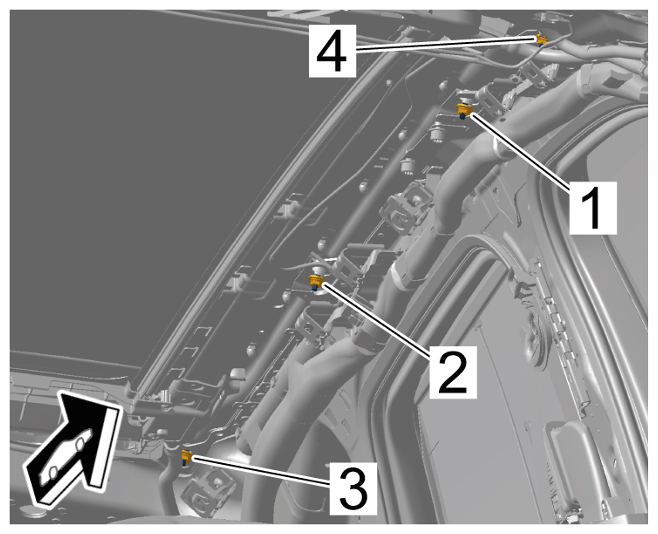

Fastening nuts
