Removing Rear-View Mirror Housing (Upper Part)
WARNING: This page is about a different variant/trim than selected.

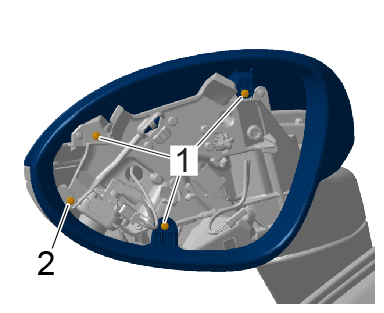

- Unscrew and remove screws -1 and 2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws

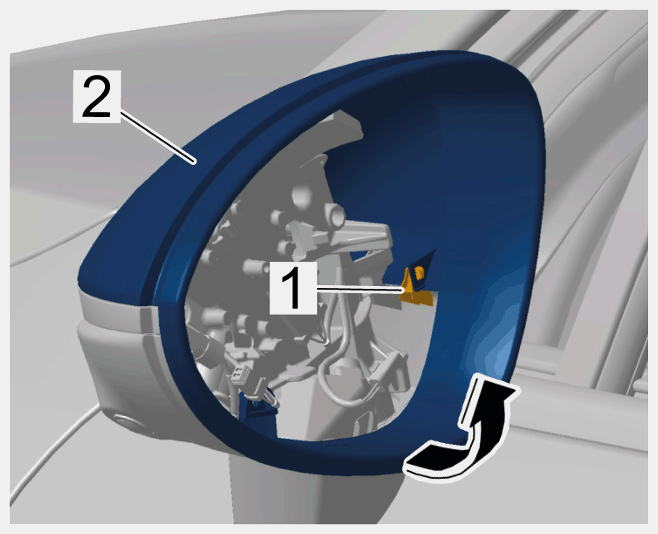

- Remove rear-view mirror housing (upper part) -2-
with side direction indicator by pulling it up -Arrow-
until the electric plug connection is accessible.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Locking lug

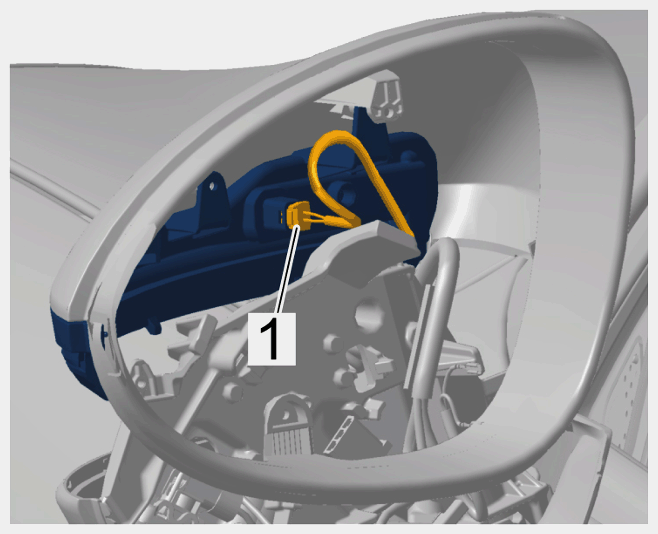

- Release and unplug electric plug connection -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection
